Danatronics - Model VIS200/250 -Push Rod Cameras

• Ideal for analyzing household waste water pipes of 1 1/2" dia and larger
• Flexible “ the camera easily takes even several bends in stride
• Position of waterproof camera head indicated in the displays
• Integrated locator transmitter precisely locates damage
• Up to 4 hours flexibility “ storage space for 2 NiMH rechargeable batteries
• 100 ft. FRP push rod
• Compact and safely stored for transport and mobility in a plastic case

• Waste water pipes of 1 1/2" and larger
• Ventilation lines of 1 1/2" and larger
• Inspect hollow spaces, e.g. in front-wall installations
• Flue gas lines up to approx. 6"

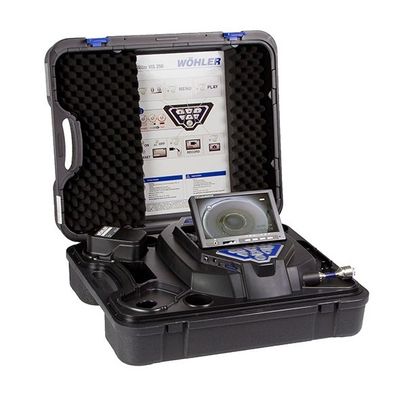

The VIS 200 is a 100` portable push rod inspection system without recording. It includes a 1" (25.4mm) diameter waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out and charger.

VIS200
The VIS 200 is a 100` portable push rod inspection system without recording. It includes a 1" (25.4mm) diameter waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out and charger.

VIS250
The VIS 250 is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions

VIS250+L
The VIS 250 + L200 Locator is a 100 foot portable push rod video inspection system including: 1" (25.4mm) diameter detachable waterproof to 100 ft. (30M) 5.5 inch TFT monitor with 6 ft (2M) cable, 2 12V batteries to provide 3 hr. operation, carrying case, video out, charger,Built-In Recording onto up to 4GB memory card, mini USB port for video transfer, camera keys with record and play functions, and the L200 camera locator

Monitor

• Dimensions housing: 7" x 4.5" x 1.3"
• TFT-display: 7" / 16:9 format
• Video out: FBAS signal
• Weight: 1 lbs

Power supply

• Space for 2 rechargeable batteries, each 12 V or via power pack

Battery operating time

• Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)

Miniature camera head, color 1" mm

• Type 1/3" COLOR CMOS
• Resolution 420 lines
• Pixels 768 x 576 (PAL), 656 x 492 (NTSC)
• Light sensitivity: 0.5 Lux
• Lens: f = 0.09", F = 2.5
• Viewing angle: 115 °
• Light source: 12 white LEDs
• Degree of protection: Waterproof to IP 68
• Dimensions: 1" x 1.5"
• Weight: 0.5 lbs
• Operation temperature: 32...104 °F, RH 95 % MAX
• Storage temperature: -4...122 °F, RH 95 % MAX
• Transmitter frequency: 8.9 kHz

Push rod

• Length 100 ft.
• Diameter 0.24"

Distance measurement

• electronic meter counter

Plastic case

• Dimensions: 20" x 17" x 7" (l x w x h)
• Weight: 15 lbs

Locator receiver

• Display: Graphic visualization of transmitted position
• Output: impedance
• Headphones: 32 Ohm
• Power supply: 3.7 V Li-Ion rechargeable battery
• Operating temperature: 32...104 °F
• Storage temperature: 14...104 °F
• Weight: 1.3 lbs
• Dimensions: 13" x 6" x 3" (l x w x h)

Memory (Wohler VIS 250)

• Recording: 2 GB SD card (2.5 h recording capacity)
• Interface: Mini USB port

L200 Locator Specifications

• Display: Graphic visualization of transmitted position
• Output: impedance
• Headphones: 32 Ohm
• Power supply: 3.7 V Li-Ion rechargeable battery
• Operating temperature: 32...104 °F
• Storage temperature: 14...104 °F
• Weight: 1.3 lbs
• Dimensions: 13" x 6" x 3" (l x w x h)
