Apex - Quartz Probe Liners

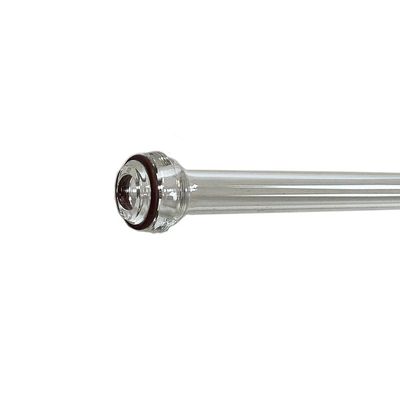

Standard Probe Liners are constructed from 5/8-inch diameter tubing and have a #28 mm ball joint attached. Liners are available in a variety of materials including borosilicate glass, quartz, stainless steel, and alloy 600.
Most popular related searches
probe liner
isokinetic sampling probe
borosilicate glass
sampling probe
isokinetic sampling
quartz glass instrument
liner integrity
ball nozzle
sampling systemr
isokinetic
Liners with integrated nozzles require a ball joint adapter.
We also offer glass and quartz liners with male 14/35-inch taper joint for attaching to the appropriate nozzle, eliminating the need for the 5/8-inch union.
- Joint Options: #28 Grooved Ball, Plain Ends
- Length: 5 FT, 6 FT, 7 FT, 8 FT, 9 FT, 10 FT, 11 FT, 12 FT
- Special Options: None, Male 14/35 Taper Joint with Ground #28 Grooved Ball, Integrated Nozzle
- Nozzle: None, 4 (1/8 IN), 5 (5/32 IN), 6 (3/16 IN), 7 (7/32 IN), 8 (1/4 IN), 9 (9/32 IN), 10 (5/16 IN), 11 (11/32 IN), 12 (3/8 IN), 13 (13/32 IN), 14 (7/16 IN), 15 (15/32 IN), 16 (1/2 IN), 17 (17/32 IN), 18 (9/16 IN), 20 (5/8 IN), 22 (13/16 IN), 28 (7/8 IN), 30 (15/16 IN), 32 (1 IN)
