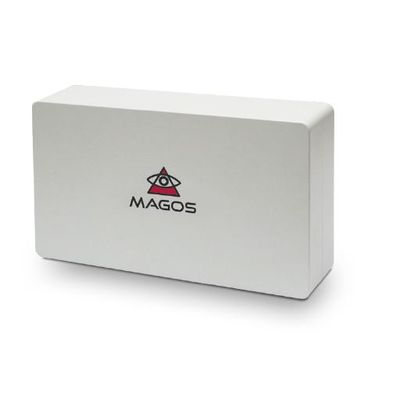

Magos - Model SR-500 -Radar
Magos’ SR-500 is our most advanced radar and the most cost effective perimeter protection solution for both rural and more saturated environments, without compromising detection performance. By utilizing state of the art MIMO & Digital beam forming technology It covers an area of more than 250,000m2(>61acres) with a detection range of up to 400m for walker and 600m for vehicle/boat, and yet consumes extremely low power (
- All-weather 24/7 Cost effective solution for smaller sites in need of high level security
- 60 acre wide area coverage: 120° (horizontal) x 30° (vertical) detection up to 600 m/2,000 ft
- Integrated with most VMS platforms
- Auto PTZ slew-to-cue integrated with most PTZ brands
- Lower initial investment and Reduced operating costs – No moving parts and Wide Area coverage
- Install 4 SR-500 and 1 PTZ Camera for all weather cost effective 360° solution covering over 120 acres
- Edge processing driven extreme power & data efficiency – easy solar + wireless integration
- Easy installation & commissioning with MASS Wizard site builder
- Integrated with MASS+AI - minimal nuisance alarms with AI based target classification
Sensor type High resolution MIMO digital
beam-forming radar
Frequency C-Band
Detection range Up to 100m Drone, 400m Human & 600m
Vehicle/ Boat
No moving parts MTBF of 50,000 hours
Built in tracker Extremely low required bandwidth (<1kbps)
Scan rate 2 scans per second
Azimuth coverage 1200
Elevation coverage 300
High Range accuracy <1.0m
Azimuth accuracy 1
0
Target detection speed 0.3 – 30 m/sec
Power 48V, 3.5W
System interface Ethernet, POE - IEEE 802.3at Type 1 (802.3af)
&Type 2
Dimensions 250(w) x 150(h) x 59(d) mm /
9.8(w) x 5.8(h) x 2.3(d) inc
Weight 1.5 Kg / 3.3lb
Environmental Full outdoor functionality, IP67. FCC & CE
compliant
Approvals FCC, UL
Operating temperature -400
- +850 C
