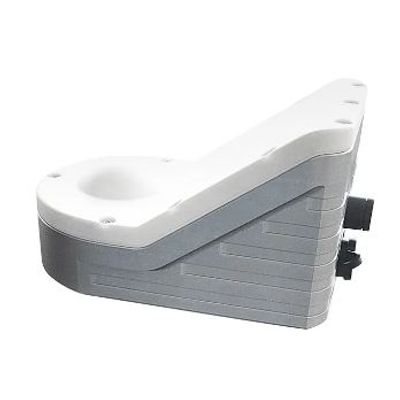

JUBO - Model JBRD-600LL -Radar Flow Meter

FromHebei Jubo Technology Co., Ltd.

SHARE

Radar flow meter with 24GHz is designed based on the measurement principle of frequency modulated continuous wave (FMCW). It can not only be used in a range of 40 meters, but also can measure speed and distance. Equipped with automatic recognition of water flow direction and built-in vertical angle correction function, it can be used for water level, velocity or flow measurement of other types of water treatment such as rivers, reservoir gates or sewers.

Most popular related searches

discharge flow monitoring

flood control system

water level monitoring

level monitoring

sewage discharge

flow monitoring

24GHz frequency modulated continuous wave (FMCW), and output measurement data of flow velocity, water level, and flow rate at the same time.
Non-contact measurement and IP68 waterproof (lightning protection design), not affected by bad weather and virus factors.
With Bluetooth parameter adjustment function, it supports mobile phone APP to wirelessly configure and maintain the device on-site.
Optional RTU function to support remote upgrade and remote maintenance of equipment.

River water level monitoring
Reservoir flood control system
Ecological discharge flow
Monitoring of flow rate of agricultural water channels
Sewage discharge control

PLACE OF ORIGIN : CANGZHOU CHINA (MAINLAND)
BRAND NAME : JUBO
MODEL NUMBER : JBRD-600LL
MEDIUM TEMPERATURE : -30°~70°
MEASURING RANGE : 60M
SPEED MEASUREMENT PITCH ANGLE : AUTOMATIC COMPENSATION 0°-80°
MEASUREMENT BLIND SPOTS : 8CM
POWER SUPPLY RANGE : 9~28VDC
INSTALLATION METHOD SUPPORT
MEASUREMENT ACCURACY : ±1MM
SPEED MEASUREMENT ANTENNA BEAM ANGLE : 12°*25°
PROTECTION GRADE : IP68
VELOCIMETRY RANGE : 0.1M/S~30M/S
COMMUNICATION METHOD : RS485/MODBUS BLUETOOTH DEBUGGING
