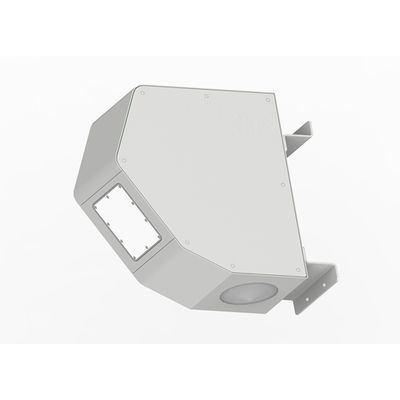

Geolux - Model RSS-2-300W-QX -Radar Flow Meter
The RSS-2-300W-QX radar flow meter utilizes advanced non-contact radar technology to effectively measure both surface velocity and water level in open channels. This technology is particularly beneficial in environments prone to driftwood, debris, and extreme weather conditions, as it requires no maintenance and is not impacted by environmental changes such as humidity, precipitation, and air temperature fluctuations. Operating in the K-band and delivering readings with 20 updates per second via RS-232 and RS-485 interfaces, it allows seamless integration with existing SCADA systems. Its dual radar technology minimizes measurement errors, even in the presence of fog or sediment concentration. The device is highly versatile, supporting various industrial applications from mining to wastewater treatment, and has a compact, rugged design suitable for hazardous installations.
RSS-2-300W-QX is a revolutionary radar type flow meter based on surface velocity and level measurement. RSS-2-300W-QX radar flow meter uses state of the art non-contact radar measuring technology to provide precise contactless measurement of flow discharge above the water surface. Contactless radar & ultrasonic technology enables quick and easy instrument installation above the water surface, and requires almost no maintenance.
RSS-2-300W-QX flow meter is used to monitor flow discharge of open channels such as rivers, irrigation channels or sewer systems, and for monitoring and control of hydro-power plants and wastewater treatment plants. The flow meter is also suitable for various mass flow metering applications in mining processing plants, industrial installations, and, due to operation without moving parts and robust mechanical design, is ideal for measurement of flammable fluids and harsh chemical applications.
The radar flow meter is combined with a radar based velocity sensor and water level sensor .
By introducing the superior dual radar technologies , measurement accuracy of radar flow meter is not influenced by air humidity (including fog), precipitation, air temperature ,fluctuations driftwood ,debris & Sediment concentration etc. Further advantages include the low energy consumption, short measuring cycle, minor dead angles and the short mounting distance.Possible false echoes caused by nearby supports etc, are removed by internal configuration of the software.RSS-2-300W-QX radar operates in K-band (at 24.125 or 24.200 GHz), and provides ?ow speed & level readings 20 times per second over serial (RS-232, RS-485) interfaces. Variety of supported communication interfaces and protocols enable easy integration with existing telemetry equipment and SCADA systems.
Installation is easy with minimum construction work.RSS-2-300W-QX is excellent where driftwood, debris, water traffic, or ice could damage stilling wells or other structures. The device can easily be relocated in the event of a storm changing the flow pattern, or if the river bed is sandy.
- Non-contact measurement of water velocity, level & discharge
- Velocity measuring range up to 15 m/s ,accuracy up to ±0.02m/s
- Water level Measuring range up to 20 m,accuracy up to ±3mm
- Insensitive to fog, precipitation and temperature
- Installation with minimal construction work
- Maintenance free
- Dual direction flow measurement
- RS-232 &RS-485 interface
- Compact,Low power consumption
- Easy pole, wall or enclosure mounting
- Low cost
