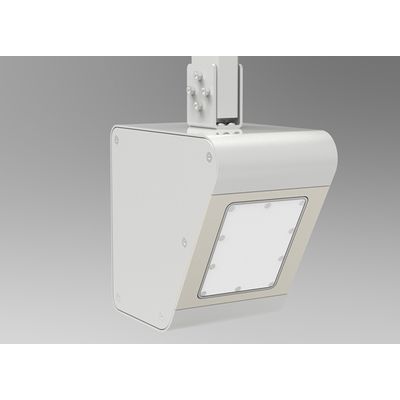

Geolux - Model RSS-2-300W-QXC -Radar Flow Meter
RSS-2-300W-QXC is a revolutionary radar type flow meter based on surface velocity and level measurement. RSS-2-300W-QX radar flow meter uses state of the art non-contact radar measuring technology to provide precise contactless measurement of flow discharge above the water surface. Contactless radar & ultrasonic technology enables quick and easy instrument installation above the water surface, and requires almost no maintenance. RSS-2-300W-QXC flow meter is used to monitor flow discharge of open channels such as rivers, irrigation channels or sewer systems, and for monitoring and control of hydro-power plants and wastewater treatment plants. The flow meter is also suitable for various mass flow metering applications in mining processing plants, industrial installations, and, due to operation without moving parts and robust mechanical design, is ideal for measurement of flammable fluids and harsh chemical applications.
The radar flow meter is combined with a radar based velocity sensor and an ultrasonic/radar based water level sensor .The flow velocity radar Geolux RSS-2-300W operates in K-band (at 24.125 or 24.200 GHz), and provides flow speed readings 20 times per second over serial (RS-232, RS-485) and CAN interfaces. Variety of supported communication interfaces and protocols enable easy integration with existing telemetry equipment and SCADA systems. Integrated tilt sensor measures inclination angle of the sensor and the flow velocity measurement is automatically cosine-corrected according to the measured mounting tilt angle.Water depth is measured by a ultrasonic/radar based water level sensor with the best accuracy of 3mm.(radar type)
RSS-2-300W-QXC flow meter is certified according to both European and American standards.
- Combined contactless flow surface velocity & water level measurement
- Automatic identification incoming & outgoing flow directions
- Operates in K-band (24.125 GHz or 24.200 GHz)
- Wide measurement range from 0.1 m/s to 15.0 m/s
- Long range operation up to 50 m
- Low power consumption (max 1,35 W, typically 1 W)
- 9 to 27 VDC input voltage range
- Operating temperature range from -40?to +85?
- IP66 aluminum casing
- RS-232, RS-485 and CAN communication interface support
- ASCII-S and GLX-NMEA protocols support; more protocols can be supported on customer request
- Automatic mounting tilt angle compensation
- Easy pole, wall or enclosure mounting
- Low cost
