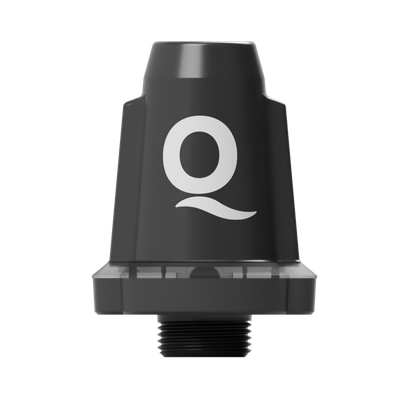

Aqua Robur - Model Fenix Eye -Radar Level Sensor
Fenix Eye is Aqua Robur’s latest radar level sensor, featuring market-leading battery life and designed for long-term, reliable level monitoring. It delivers secure, high-resolution measurement data in wastewater networks, stormwater networks, tanks, catchment areas, and recipients.
By combining high-precision radar, cellular connectivity, and remote configuration in a robust, compact form factor, Fenix Eye enables stable data collection even in exposed and difficult-to-access environments.
With our new installation application, users can ensure the installation is carried out correctly based on site-specific conditions. This provides optimal measurement conditions and enables long-term, reliable data collection.
Fenix Eye is designed to operate across a wide range of installation sites and in most environments. With a rugged enclosure, carefully selected materials, and a radar measurement methodology developed for stable operation, Fenix Eye delivers high precision and reliable measurements over the long term.
Software & Electrical
- Internal sensor log interval: Every 3 hours
- Internal device memory: Approx 100.000 logged data points
- Radio technology: NB-IoT and LTE CAT-M
- Data transmission: Periodic / data-triggered / manual
- Data transmission interval: Configurable, down to 5 min
- Cellular roaming: Multi-region data plan
- Configurations and upgrades: Remote encrypted over-the-air (FOTA and COTA)
- Local configuration: BLE (Live Mode)
- Data communication: Bidirectional
- Data hosting: Cloud Azure
- Cyber security: DTLS 1.2 protocol
- Software integration: REST API, MQTT, CSV, SCADA
- Device management: Aqua IoT Cloud or local BLE
- Fleet management: Aqua IoT Cloud
- Site management: Aqua IoT Cloud
- Alert management: Aqua IoT Cloud
- Alert endpoint: Email, SMS
- Alert trigger: Device (immidiate) or Cloud
Mechanical
- Power supply: Battery pack containing Lithium Thionyl Chloride (LTC), field-replaceable, non-rechargable
- Battery voltage: 3.6V
- Battery capacity: 17Ah
- Battery life: Up to 15 years (depending on usage)
- Radar log interval: Configurable, min 60 sec, smart adaptive mode
- Radar accuracy: +/- 1% of measurement range
- Radar range: 150mm to 20m
- Radar beam angle: < 8°
- Antenna: External, SMA interface (3 m antenna included)
- Dimensions (W x H x D): 75 x 80 x 113 mm
- Weight: 0.5 kg
- Enclosure material: PBT, HDPE and TPE
- Console material: Stainless steel, 316L
- Thread connector: G1"
- Ingress Protection: IP68 (3 m for 24h)
- Operating temperature: -20 °C to +70 °C
- EU: CE
- Safety: IEC 62368-1
- EMC: EMC Directive 2014/30/EU
- Ingress protection (IP68): IEC 60529
