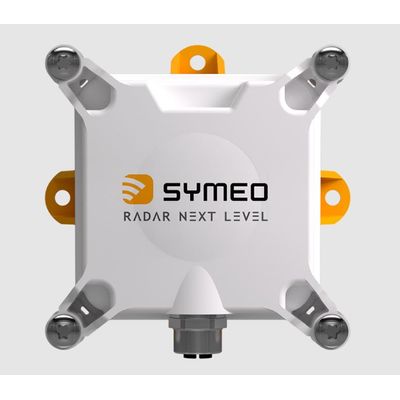

LPR - Model 1DHP-350 - Radar System

LPR - Model 1DHP-350 -Radar System

SHARE

The LPR^®-1DHP-350 radar system performs distance measurements for short and medium ranges with high accuracy. Based on primary or secondary radar measurements, the LPR^®-1DHP-350 can detect the position and speed of objects such as cranes or rail-based transport systems in real time and make the data available via the device interfaces. The sensors are easy to install and put into operation with the aid of a webbased interface. A directional antenna is integrated into the housing. The device features the latest millimeter-wave technology for highly precise measurements. Even under the harshest weather and environmental conditions such as rain, fog, snow, dust, smoke or vibrations, the maintenance- and wear-and-tear-free wireless technology operates reliably with a high degree of availability – indoors and outdoors.

Most popular related searches

ultrasonic sensor

integrity monitoring

distance sensor

LPR®-1DHP-350 features at a glance

122 GHz primary and secondary radar sensor
Contactless distance measurements via radio waves
Small form factor
Easy installation
Impervious to dirt and harsh conditions
Maintenance-free

Typical applications

Laser and ultrasonic sensor replacement
Crane and hoist positioning
Forklifts

Model number: BSX300350

Radar measurement mode: Primary radar, secondary radar

Frequency range: 121 - 123 GHz

Supply voltage: Power over Ethernet IEEE802.3af Class 0

Power consumption: < 5W

Ambient temperature: -40°C to +60°C (-40°F to +140°F)

Protection class housing: IP67

Vibration: 20 cycles, each 4:25 h, x-y-z, 5 g, 5 Hz - 500 Hz, 15 mm (acc. to DIN EN 60068-2-6:2008)

Shock: 200 cycles, x-y-z, 40 g, 6 ms (acc. to DIN EN 60068-2-27:2010)

Housing dimensions (L x W x H); weight: 90 x 90 x 35 mm; 190 g

Transmission power (EIRP): Up to 20 dBm EIRP

Bandwidth: ETSI: Up to 750 MHz1) FCC: Up to 2 GHz1)

Interface: 100 Mbit/s Fast-Ethernet IEEE802.3 100BASE-TX

Ethernet (TCP / IP, Profinet)

Response time: < 100 ms

MTBF: 428 697 h / 48.9 a

External connector: 1 x M12 x-coded

Antenna: Integrated, field of view = ± 2.5°

Compliance: ETSI

FCC

KCC

1) Depending on settings
