JMei - Model RCB90 -Radio Remote Control System
FromJMei

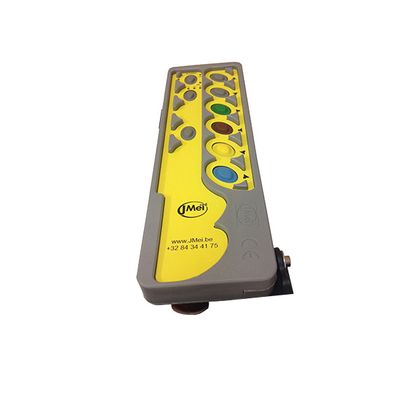

High-performance pendant-control-type safety transmitter designed for all-or-nothing (binary) controls. The RCB90 is a wireless remote control that has proved itself over many years. The buttons on the transmitter are two-stage and enable the corresponding relays on the receiver unit to be controlled. Ultra-compact, light and very robust housing, made of reinforced plastic for industrial use, very ergonomic housing, specially adapted for aggressive environments. Emergency stop mushroom button, to ensure maximum safety. Available in 2 versions: 9-button (RCB90L) or 14-button (RCB90M).
Most popular related searches
emergency stop buttons
emergency stop
radio remote control
tower crane
water jetting
industrial water pump
industrial water pumping
industrial pump
security system
water jetting pump
- Two-stage buttons.
- 3 configurable buttons on 2- or 3-position fixed or spring-back selectors.
- Customisable front panel and inscription.
- Military quality mushroom emergency stop button.
- Interchangeable NiMH battery.
- Optional diagnostics and feedback LED.
- Exclusive system for changes of address, frequency, configuration through the buttons enabling rapid and secure interchangeability of the transmitters (one single reserve transmitter for several pieces of equipment).
- Frequency possible range 434 MHz or 868/870 MHz, 64 possible frequencies.
- Transmitter and receiver frequencies and addresses configurable by operating the transmitter push buttons( in maintenance and safety mode), no need to configure anything on the receiver unit.
- Transmission power: < 10 mW
- Modulation: FM : FSK
- Transmission code: 32-bit address and 16-bit CRC.
- Bidirectional radio control, meaning that the receiver and transmitter can transmit and receive over a single frequency.
- Class 3 emergency stop.
- NiMH battery, no memory effect and long battery life (>20 hours)
- Operating distance: 200m
- Tandem/master/slave system with secure TCA27 IRC security control device
- IRC-designed microprocessor-controlled charger, charging time: 4 hours
- IRC receiver, able for connection and networking to PLC application by most diverse analogue and serial interfaces, for example CAN bus, Profibus, Ethernet, RS232or RS 485
Options
- Transmission in bi-directional mode.
- Display unit.
- Identification key (rapid replacement of a damaged transmitter).
- Master/slave Tandem system.
- TCA27 secure start.
- RECB or RCB7000-type receiver unit, can be connected via Profibus, Ethernet, Canbus, Profitnet or other fieldbus.
Accessories
- Protective cover
- Charger with JMei-designed microprocessor
- Interchangeable NiMH battery.
Applications
- Travelling crane.
- Tower crane.
- Industrial door.
- Pump, water jet.
