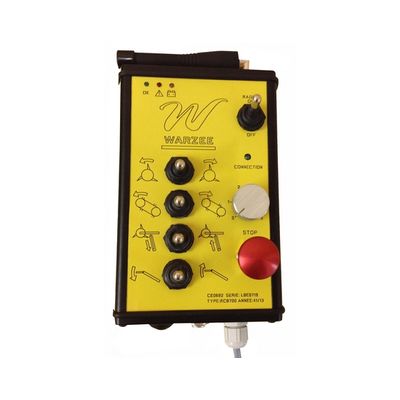

JMei - Model RCB700 -Radio Remote Control System
FromJMei
High-performance secure pendant-control-type transmitter designed for the controls of any industrial machine. The RCB700 is a freely configurable and high-quality wireless remote control. Produced in aluminium housing, extremely robust, it offers a multitude of possibilities. The size of the housing is flexible and enables our product to be customised depending on the customer`s wishes. Emergency stop mushroom button, to ensure maximum safety.
Most popular related searches
Advantages
- Up to 20 configurable binary functions.
- Spring-back or fixed-position selector switches.
- Standard push-button or with warning lights.
- Proportional analogue functions (4 MAX).
- Customisable front panel and inscription.
- Military quality mushroom emergency stop button.
- Internal NiMH battery.
- Optional diagnostics and feedback LED.
- Optional LCD graphics screen.
- Exclusive system for changes of address, frequency, configuration through the buttons enabling rapid and secure interchangeability of the transmitters (one single reserve transmitter for several pieces of equipment).
Options
- Transmission in bi-directional mode.
- Display unit.
- Barcode reader
- Identification key (rapid replacement of a damaged transmitter). More info...
Accessories
- Protective cover.
- Charger with JMei-designed microprocessor.
- Belt fastening clips.
- Charging station.
- RECB or RCB7000-type receiver unit, can be connected via Profibus, Ethernet, Canbus, Profitnet or other fieldbus.More info...
Applications
- Forestry forwarders.
- Pump.
- Saw.
- Agricultural Machinery.
- Forestry Machinery.
- Iron and steel industry equipment.
- Frequency range 433/434 MHz or 868/870 MHz, 64 possible frequencies.
- Both transmitter and receiver frequency can be configured using the control buttons, no need to configure anything on the receiver unit.
- Bidirectional radio control, meaning that the receiver and transmitter can receive and transmit using a single frequency.
- Lightweight and manageable, making the unit very easy to use.
- Class 3 emergency stop push button.
- NiMH battery, no memory effect and long battery life (>10 hours).
- Operating distance: 500m.
- IRC-designed microprocessor-controlled charger, charging time: 4 hours.
- Options: Identification key, security control device (secure start-up), master/slave systems, display.
