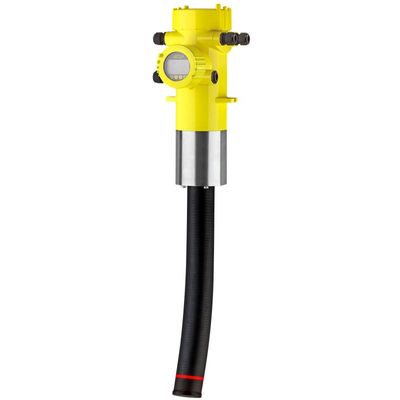

FIBERTRAC - Model 32 -Radiometric Sensor for Continuous Level and Interface Measurement
Application area: The flexible detector is used on round vessels and vessels with conical outlet and is suitable for measurement of liquids, solids, slurries and suspensions. Due to the larger scintillator cross-section, FIBERTRAC 32 has higher sensitivity and accuracy FIBERTRAC 32 is a radiation-based sensor for continuous measurement of liquids and bulk solids. It is suitable for level and interface measurement under extreme process temperatures, in aggressive media or under problematic product properties. Due to the bigger flexible plastic sensing element, FIBERTRAC 32 offers even quicker and more reliable measurement results, also under the harshest application conditions.
More about this product— External link
Most popular related searches
level and interface measurement
interface monitoring
level monitoring
dust explosion protection
explosion protection
dust explosibility
intrinsic safety
dust explosion
continuous level monitoring
radiation sensor
- Simple mounting on round and conical vessels through flexible detector
- High plant availability through non-contact measurement
- Efficiency due to the large measuring range
- Measuring range - Distance: 7 m [Meter - Foot]
- Process temperature: - [°C - °F]
- Process pressure: - [Bar-kPa-psi]
- Accuracy: ±0.5%
- Density: Density
- Materials, wetted parts: No wetted material
- Threaded connection: Mounting from outside via supplied mounting brackets
- Seal material: no media contact
- Housing material:
- Aluminium
- Stainless steel (precision casting)
- Protection rating: IP66/IP67
- Output:
- Profibus PA
- Foundation Fieldbus
- 4... 20 mA/HART - four-wire
- Ambient temperature: -20... 50 °C
Approvals:
- Scope:
- ATEX / Europe
- CSA/ Canada
- FM / USA
- EAC (GOST) / Russia
- IEC/worldwide
- NEPSI/China
- INMETRO/Brazil
- CCOE/India
- KTL Korea
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- SIL qualification: SIL2
Display & adjustment:
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™. PDM)
- Bluetooth
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
