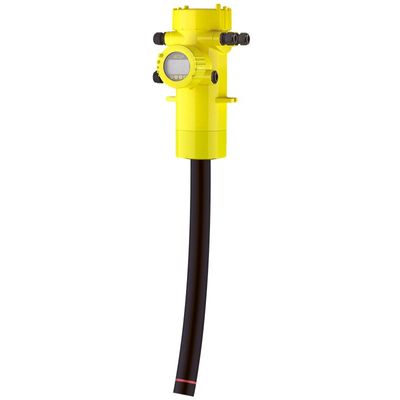

FiberTrac 31 - Radiometric Sensor for Continuous Level Measurement
Application area: The flexible detector is used on round vessels and vessels with conical outlet and is suitable for measurement of liquids, solids, slurries and suspensions. Due to its thin, flexible scintillator cross-section, FIBERTRAC 31 can be easily adapted to round vessels. The FIBERTRAC 31 is a radiation-based sensor with flexible plastic sensing element for continuous measurement of liquids and bulk solids. It is suitable for level measurement under extreme process temperatures, in case of critical product features or aggressive products. The FIBERTRAC 31 delivers precise measuring results even under hardest application conditions.
- Simple mounting on round and conical vessels through flexible detector
- High plant availability through non-contact measurement
- Cost saving through use of only one sensor up to 7 m measuring range
Level measurement in the reboiler
To the applicationDensity, level measurement and point level detection in the reactor
To the application- Measuring range - Distance: 7 m [Meter - Foot]
- Process temperature: - [°C - °F]
- Process pressure: - [Bar-kPa-psi]
- Accuracy: ±0.5%
- Density: Density
- Materials, wetted parts: No wetted material
- Threaded connection: Mounting from outside via supplied mounting brackets
- Seal material: no media contact
- Housing material:
- Aluminium
- Stainless steel (precision casting)
- Protection rating: IP66/IP67
- Output:
- Profibus PA
- Foundation Fieldbus
- 4 ... 20 mA/HART - four-wire
- Ambient temperature: -20... 50 °C
Approvals
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Russia
- IEC/worldwide
- NEPSI/China
- INMETRO/Brazil
- CCOE/India
- KTL Korea
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Overfill protection: WHG
- SIL qualification: SIL2
Display & adjustment:
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™. PDM)
- Bluetooth
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
