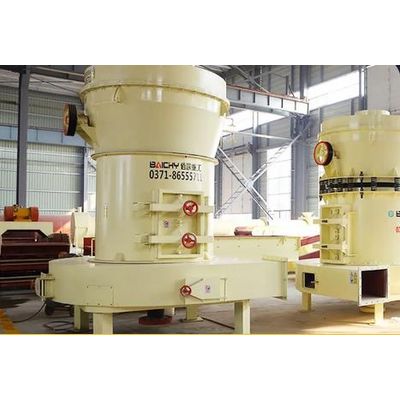

Baichy - Model 3R -Raymond Mill

Raymond mill, also known as Raymond grinding mill, Raymond roller mill, and Raymond grinder, is suitable for grinding non-flammable and non-explosive materials. The finished powder size can be adjusted between 30 and 425 mesh(0.613mm-0.044mm).

Applicable materials

Raymond Mill applies to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry, and metallurgy, such as stone flour, barite, bentonite, calcium carbonate, clinker, coal, dolomite, lead oxide, limestone, marble, quartz, ultrafine

The fineness of the finished product can be adjusted from 100 meshes to 325 meshes according to requirements. Raymond mill is the main and widely used grinding machine.

The complete Raymond Mill machine mainly includes a grinding roller, separator, blower, dust collector, etc. According to user needs, it can be equipped with a jaw/hammer crusher, bucket elevator, vibrating feeder, electric control cabinet, etc. How does Raymond mill work? Large bulk materials crushed by a jaw crusher to the needed size are fed into the storage hopper and then fed into a grinding chamber uniformly by a vibrating feeder for grinding. Ground materials are blown into a separator by a blower for classification. With the function of impellers in the separator, materials without meeting fineness are fallen into the grinding chamber for grinding again. Materials meeting fineness are blown into a cyclone powder collector with airflow through pipelines for separation and collection. The powder from a discharging device is the finished product. Separated airflow is back to the blower through the return duct on the top of the cyclone powder collector.
