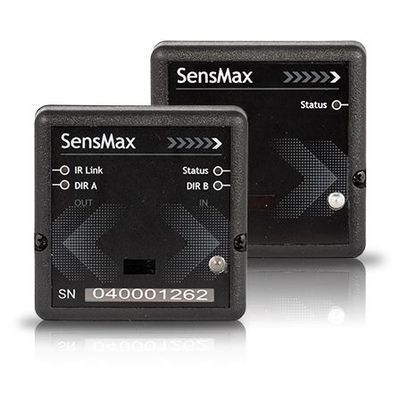

SensMax - Model D3 TS -Real-Time Wireless People Counting Sensor

Operation principle: Three infrared beams crossing
Movement direction finding: Two directions IN and OUT
Internal memory: 1000 records
Battery life: Up to 1 year
Additional feature: Real-time data delivery

SensMax Pro D3 TS is wireless people counting sensor for projects where it is needed to count people in real-time mode. Easy wireless installation takes 5 minutes only. Real-time people counting sensor has a bi-directional counting algorithm for detecting visitor of IN or OUT movement direction. Wireless people counter delivering data to a SensMax cloud reporting portal in the real-time mode so that you can follow up premises occupation statistics in real-time.

There are two modifications of real-time people counting sensors: SensMax D3 LR TS, and SensMax D3 SLR TS with communication ranges of up to 150m and up to 800m. We recommend using SensMax D3 LR TS for small and medium-size premises and SensMax D3 SLR TS for people counting in large buildings with many entrances and several floors such as big office buildings or shopping malls.

SensMax Pro D3 TS is a battery-powered wireless people counting sensor. Powered up by standard batteries for up to 1 year. The sensor has built-in memory for backup of 1000 records. Real-time people counting sensors using SensMax LAN/Internet or WiFi/Internet data gateway for delivering statistics to the cloud reporting system.

You can get standard statistical and analytical reports for people traffic flow historical analysis, as well as real-time occupancy reports with options to configure automated notifications according to the number of visitors on the premises. Check detailed information about real-time reports here.

• Real-time people counting – wireless people counter sending info to the cloud reporting portal in real-time mode.
• Movement direction detection – real-time people counter use bidirectional counting algorithm for detecting incoming and outgoing visitors.
• Wireless setup – installation of wireless real-time people counting sensors is straightforward and takes some minutes only.
• Internal memory – bidirectional real-time people counting sensor has internal memory for backup of 1000 visitor records.
• Advanced reporting – online reports with advanced configuration options for occupancy monitoring

Application: Real-time people counting in retail store, occupancy monitoring in shopping mall, real-time people counting in office buildings, real-time people counting in washrooms, real-time occupancy monitoring in premises
People counting technology: Three infrared beam crossing
Movement tracking : Bi-directional IN/OUT
Internal memory : 1000 records
Connectivity range : SensMax D3 LR TS up to 150m; SensMax D3 SLR TS up to 800m
Radio module frequency : SensMax D3 LR TS 868 MHz; SensMax D3 SLR TS 868 MHz
Data gateways supported :
Real-time data gateway SensMax TCPIP TS
Real-time data gateway SensMax WiFi TS
Case : Black or White ABS Plastic
GDPR/Privacy law: Anonymous people detection, 100% compliant, no filming
Counting accuracy : Up to 99%
Passage width : Optimal 1m - 5m, maximum - 9m
Infrared ray angle : Three beams, 6°
Fixture: Double-sided adhesive tape, Plastic mounting bracket
Tamper protection: Sound alarm and report in software
Power supply : AA batteries
Battery lifetime: Up to 1 year
Dimensions : 67x67x25mm
