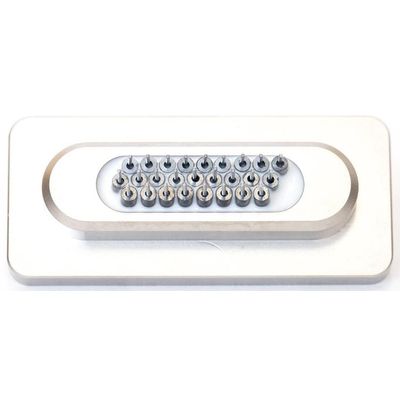

PHT - Rectangular Connectors
We offer both plug and receptacle mated pair with filtered capability for standard or custom RF signal requirements. Housings can be fabricated as one-piece or two-piece customized assemblies for unique applications including ceramic inserts. Matched and compression sealing for standard as well as custom products.
Materials (Shells):
Stainless Steel, Titanium, Kovar, Monel, Aluminum, Inconel 600 & X-750. RoHS compliant materials and certification available.
Materials (Contacts):
Iron Nickel Alloy, 52 Alloy, Kovar, Brass, Beryllium Copper and Phosphorus Bronze as well as other types of Copper Alloy materials. RoHS compliant materials and certification available.
Plating:
NADCAP certified plating is available with nickel, tin, tin-lead, silver, cadmium or gold finish and stainless steel passivation.
Hardware Mounting Configurations:
Flange and customized designs for laser welding. Post machining capability for titanium and kovar welding requirements.
Terminations:
Flatten and pierce or eyelet, flying lead, solder tail, solder cup, solder pot, and all are available with solder dip coating.
Contacts:
All contact styles and sizes are available and will meet Mil-Std-1344 requirements.
Testing:
Leak Rate (1x 10-9 cc/sec helium at 1 atmosphere differential) and pressure testing up to 40,000 PSI, electrical continuity, dielectric withstanding voltage (DWV) per Mil-Std 1344 and insulation resistance (IR) validation at temperature per Mil-Std 202.
Tolerances:
Less than .001” are achievable on finished assemblies, please consult the factory for details.
