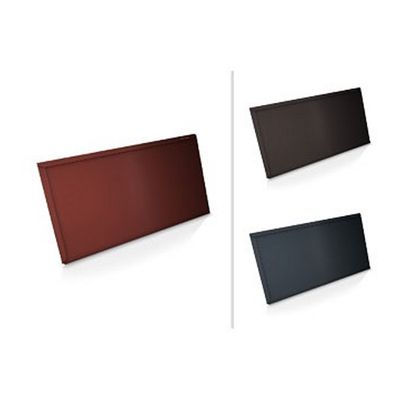

Boehme - Rectangular Metal Shingle

Rectangular metal shingle with framing seam. With the special BOEHME^® SYSTEMS bending technology, the framing seam receives a U-shaped profile so to increase resiliency against lifting off forces.

The fittings for BOEHME SYSTEMS Clips are preset by corresponding slots. The top-sided seam corner is finished in folding technology, so that any water permeation due to wind blockage is prevented. The Classic Shingle Type Rectangle M is a small-format shingle which can be installed in a one-third or semi-interlock.

Additional: The regulations for carrying out roofing work on roofs and facades (roofing trade regulations) must be applied when calculating the dimensions of the building components and determining the number of fastening clips.

Rectangle S

Height : 310 mm (visible area)
Width : 600 mm (visible area)
Thickness : 0.7 mm
Quantity : 5.38 Item/m²
Weight : 3.3 kg/m² (Alu)
Materials : Aluminium (Standard), Zinc, Copper, Stainless steel
Installation : According to DIN or BOEHME® SYSTEMS Installation Guidelines

Rectangle M

Height : 410 mm (visible area)
Width : 800 mm (visible area)
Thickness : 0.7 mm
Quantity : 3.05 Item/m²
Weight : 3.3 kg/m² (Alu)
Materials : Aluminium (Standard), Zinc, Copper, Stainless steel
Installation : According to DIN or BOEHME® SYSTEMS Installation Guidelines

Rectangle L

Height : 510 mm (visible area)
Width : 1,000 mm (visible area)
Thickness : 0.7 mm
Quantity : 2.0 Item/m²
Weight : 3.3 kg/m² (Alu)
Materials : Aluminium (Standard), Zinc, Copper, Stainless steel
Installation : According to DIN or BOEHME® SYSTEMS Installation Guidelines

Rectangle Vario

Height : Upon request
Width : Upon request
Thickness : Upon request
Quantity : Upon request
Weight : Upon request
Materials : Aluminium (Standard), Zinc, Copper, Stainless steel
Installation : According to DIN or BOEHME® SYSTEMS Installation Guidelines
