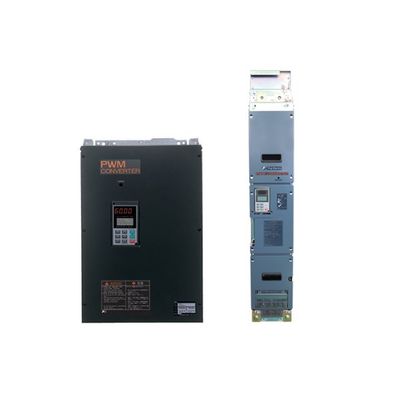

Model RHC-C / RHC-D Series -Regenerative Converters
Regenerative converters can significantly reduce the harmonic distortion generated by the inverter that effects on electric power systems (IEEE 519-1992). On the other hand, the regenerated energy, all of which are returned to the power source, promotes energy saving.
Most popular related searches
harmonic filter
isolation transformer
electric power
electrical power
energy saving
power factor
harmonic filter reactor
electrical system
transformer isolation
inverter
RHC-CE Series - Unit Type Features
- A capacity range from 7.5 kW to 55 kW
- Rating available in MD and LD
- Input Voltage 400VAC
- Can be operated with the power-factor “1” and reduce harmonic current and power supply capacity
- Various protection and maintenance functions like output signals (overheat, overload, life time) and easy trouble shooting by “track-back” option
- Stronger braking capability (lift application)
RHC-DE Series - Stack Type Features
- A capacity range from 132 kW to 4.8 MW
- Rating available in MD and LD
- Input Voltage 400 VAC & 690 VAC
- Two configurations available depending on size and power: Standard Stack and Phase Stack
- Able to work with isolated and non-isolated transformers
RHF-DE Series Features
- A capacity range from 160 kW to 1.36 MW
- Rating available in MD and LD
- Input Voltage 400 VAC & 690 VAC
- Only Standard Stack
Charging circuit, harmonic filter and boosting reactor are all in one
