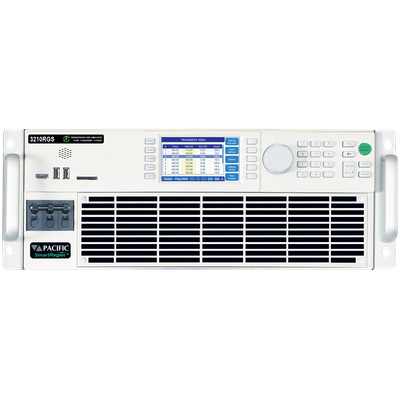

Model RGS -Regenerative Grid Simulator

The 2-in-1 Regenerative Grid Simulator & Optional Load. The Regenerative Grid Simulator RGS Series is the next generation ‘2-in-1’ grid simulator and optional 4 quadrant load, designed for the testing and verification of all grid-tied applications. Emulate almost any grid condition and test to global regulatory compliance standards such as IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4, and more. The RLS Grid Simulator can verify the AC product performance while the optional AC DC Load is ideal for simulating any inductive, capacitive, or resistive load for a complete solution.

Emulate the Power Grid

The Regenerative Grid Simulator – RGS Series is compact with high-power density, providing 12kVA/kW up to 21kVA/kW in a 4U chassis. Test systems can be paralleled up to 168kVA/kW in a single 19” cabinet. Dual cabinets can parallel up to 252kVA/kW.

The Regenerative Grid Simulator RGS Series simulates almost any power grid disturbance and distorted waveforms. The load option offers a complete solution if needed.

Test applications: Utility grid, microgrid, EV chargers, Vehicle-to-Grid (V2G), Vehicle-to-Home (V2H), Solar PV/grid-tied inverters, home energy storage systems, UPS, PDUs, and more.

Seamless Grid Simulation with Constant Power Voltage Range

Accurately simulate the power grid with seamless transition of voltage ranges. A single constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in output power.

Exceptionally High Current

The RGS Series provides a broader range of current eliminating the risk of over or under sizing the power source. This reduces the need for additional capital investment. The diagram to the right illustrates the RGS’s capability to provide 20% more current from 120V to 200V when compared to a typical grid simulator that maxes out at 35A/phase.

Flexible Output Configuration for Accurate Grid Simulation

Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, (AC+DC optional) output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.

Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.

Easily Generate Harmonics & Inter-Harmonic Waveforms

The Regenerative Grid Simulator – RGS Series has a built-in waveform digitizer and scope with fast transient capabilities at 200us time resolution supporting LIST, PULSE and STEP modes. Waveform generation includes ten Standard, Sine, Square, Triangle, Clipped and Harmonics AND inter-harmonics generation.

2-in-1: Grid Simulator, AC & DC Electronic Load (Option L)
Four Quadrant Operation with energy recovery back to the grid
Standard Models in Power Levels from 12kVA to 21kVA. Parallel units up to 168kVA/kW per cabinet. Dual cabinets up to 252kVA/kW.
Ultimate Flexibility with 6 configurations: 1, 2 or 3 Phase, dual or triple independent outputs/inputs, single + split outputs/inputs.
AC, DC (AC+DC option)
Galvanic Isolation from Facility AC Input to Output and Between Output Phases / Channels
Single constant power voltage (Voltage Source mode) or current range (Current Source mode)
Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
Extensive Analog and Digital I/O for ATE and system integration.
380V-480V 3 Phase AC input with Active PFC

Harmonics & Inter-harmonics included
Advanced waveform capture scope function
200 stored programs for both static and dynamic Transient Testing
Sine, Square, Triangle, THD and Arbitrary waveforms
LIST, PULSE and STEP Mode Transients
Programmable Output Impedance (R+L) both Real-Time & RMS modes
Continuous Self Calibration (CSC)
Precision Voltage Programming – 0.02% with CSC engaged in AC and DC modes
Standard Ethernet (LAN), USB, GPIB and RS-232 Interfaces with SCPI compatibility
IVI Instrument drivers
SmartSource Suite LXI Compliant LAN/Ethernet with embedded web server
POWER FLEX upgrade program allows units to be retrofitted for higher power output

Regenerative Power Over 90% Energy Efficiency

RGS Series Operating Features

Voltage Source Mode:

AC mode: The RGS simulates any AC power grid in the world through its wide voltage and frequency operating range. Both sourcing and sinking of full power is supported.
DC mode: The RGS provides a higher power, single, dual or triple DC rail power supply with bidirectional DC current flow and bipolar voltage ranges.

AC/DC Electronic Load Mode Option:

With this option, the RGS turns into a programmable AC or DC electronic load with 4-Quadrant capability so both true and apparent power can be drawn with programmable control over power factor, current crest factor, current waveshape etc. Instead of dissipating the energy received from the unit under test, the RGS load returns up to 90% of the absorbed energy back to the grid.

Time and Cycle Based Transients:

Create and execute transients that occur over a specified time segment or number of cycles to modify the output waveform, voltage, and frequency for any or all phases. An output trigger is provided for synchronizing external test equipment to the actual transient event.

Easy to Use, Multiple Control Options

Continuous Self Calibration:

Provides exceptional accuracy of the AC or DC output Voltage. When enabled, accuracy improves to ±0.02% referenced to the power source internal voltmeter.

Extensive Waveform Library:

Up to 200 different waveforms can be stored in the waveform library for execution as part of a steady state program or for substitution in any output phase as part of a transient test program. Memory location #1 is a non-editable high resolution sine wave. Locations 2 and higher are editable and can be substituted in any output phase. Store unlimited number of waveforms on the computer using the SmartSource Suite web browser interface.

Phase Conversion:

With the ability to provide single, split and three-phase outputs, the RGS Series is the perfect choice to provide 1 Phase to 2 or 3 Phase or 3 Phase to 1 Phase conversion.

Safety Features & Protection Limits:

Full galvanic isolation protects the user and UUT. Enhanced protection modes are includes programmable limit protection modes for real power, apparent power, over voltage and over temperature.

Cooling & Energy Savings Mode:

Front forced air intake with rear exhaust. Automatic Fan Speed Control for low acoustic noise and extended fan life. The Energy Saving Sleep Mode result in low power consumption during idle periods and extends the product life.

Protective Transit Cases for Mobile Applications

Pacific Power Source offers rugged transit cases to protect your AC Source from adverse environmental conditions for mobile and/or military applications.

Specific Benefits:

Cases available for the following models:

5U Size Case: 360RGS, 390RGS, 3120RGS, 3150RGS, 3180RGS, 3210RGS
