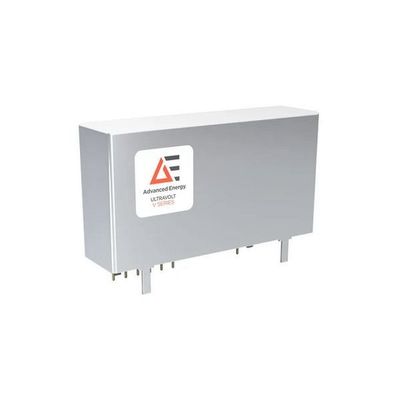

Model V Series -Regulated, Compact Power Supply

• Maximum Output Voltage/Power: 3 kV DC/1 W
• Type: Single output
• Ripple: < 100 ppm
• Control Interface: Analog
• Temperature Coefficient: 100 ppm/⁰C

The UltraVolt V series offers seven models ranging from 600 to 3000 VDC of maximum high voltage power. They are available in either single-output positive or negative polarities. The V series modules deliver up to 1 W of power from a 5, 12, 15, or 24 VDC input. Protection against reversed input polarity, short circuits, and arcing is standard. With a footprint under 1 in² (6.45 cm²), these modules are perfect for applications with limited board space.

• Meet product packaging requirements
• Design power subsystems around product needs — not high voltage module constraints
• Achieve higher precision than proportional-control high voltage supplies
• Enhance application performance through responsive control of high voltage output
• Increase power subsystem robustness and reliability

• Small-footprint, lightweight, PCB-mountable package
• Wide selection of input and output voltage configurations
• Low output ripple, temperature coefficient, and line regulation (Analog interface with integral voltage control and voltage/current monitors)
• Integrated reverse polarity, short-circuit/arc, and overcurrent protection
