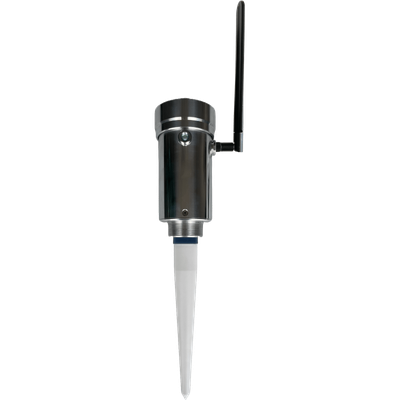

ABM - Model R-RM -Remote Continuous Radar Level Sensor

• Low voltage sensor with built-in cellular modem
• Remote monitoring, full control and 24/7 virtual support
• Measuring range up to 340 ft (103.6 m)
• Non-contact continuous level measurement
• Build-up resistant Teflon antenna, maintenance free operation
• Plug-and-play installation with simple web calibration

• Technology: Pulse radar
• Measuring Range: Up to 340 ft (103.6 m)
• Accuracy: +/- 0.10 % of maximum range (in lab using 4-20 mA current output). +/- 0.25 % of maximum range (typical in field)
• Frequency: 6.3 GHz, 5.8 GHz (outside North America) or dual frequency 6.3/26 GHz. Application dependent
• Calibration: Programmable via Sensor Access website
• Output: Cellular data transmission to servers, 4-20 mA output 6.1 uA resolution
• Power: 12 to 30 VDC (3-wire)
• Communication: Remote via Sensor Access website
• Ambient Temperature: -40 to 60°C (-40 to 140°F)
• Installation Category: Class II
• Enclosure Material: Aluminum standard. SS316L optional
• Protection Rating: IP68 (NEMA 6)
• Antenna: Teflon rod or SS316L horn
• Process Connection: 1.5″ – 3″ NPT
• Process Temperature: -40 to 80°C (-40 to 176°F)
• Process Pressure: ≤ 5 Bar (72.5 psi)

• Self-adjusting sensor, automatically eliminates false echoes without user involvement
• High resolution with short transmitted pulses ensures accuracy
• Very narrow radiation beam enables installation close to tank walls
• No influence from mounting, walls or internal obstructions on sensors performance
• No influence from temperature, pressure or humidity on measurement
• Teflon rod antenna resists material and moisture build-up
• Non-contact and self-cleaning nature provides maintenance free operation

Technology Advantage

ABM’s smart, self-adjusting radar sensors continually monitor conditions in the environment and automatically adjust the transmitted energy and sensitivity to match the current tank conditions. This technique allows the receiver to detect only one echo from the measured media while all false echoes are pushed under the noise level and eliminated. The self-adjusting technique also gives the same amplitude of wanted echoes regardless of distance to the target. With one echo only, signal processing is very simple and the certainty of the measured echo being the target is 100%. This makes the ABM sensors very accurate and reliable.

Very narrow transmit pulses enable liquid interface detection, such as oil-water interface. The radar sensor has a very fast response, up to 20 updates per second, enabling control for fast moving applications (i.e. vehicles, boats, etc.). Very high dynamics enables detection of very low dielectric constant liquids (>2).

Operation is plug-and-play with ABM sensors. The self-adjusting nature means there is no need for mapping or profiling the environment or downloading several parameters. These signal process operations commonly used by other brands reduce the certainty in the measured materials level. ABM sensors are smart and automatically adapt without user involvement.

The R-RM pulse radar sensor from ABM is the ideal solution for liquid and solid remote level applications with vapours, gases (CO₂, CO, H₂S, H₂), foaming, ice, volatile surfaces, wind, temperature variations, extreme temperatures or extreme dust. The sensor with built-in cellular modem is plug-and-play, automatically connecting to the ABM servers that are fully secured for ease of installation.

The non-contact radar sensor provides  level measurement up to 340 ft (103.6 m) with simple remote web calibration. The sensor can be factory configured for a variety of applications with multiple range options.

Industries

• Water & Wastewater
• Chemical
• Petrochemical
• Environmental
• Marine

Applications

• Flood monitoring
• Water towers / tanks
• Water level in manholes / sewer systems
