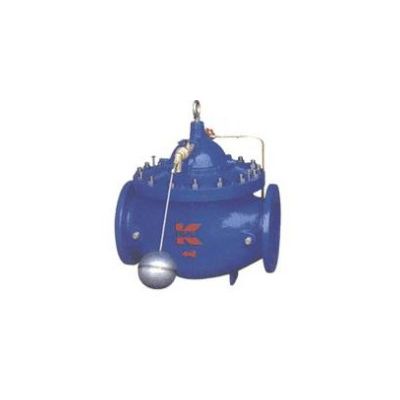

Model 100X -Remote Float Control Valves
The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously.
When adding a solenoid valve, then comprises another type (i,e,106X), which provides double control to water level,normally used at high overflow prevention project
Pressure Rating: PN10. PN16. PN25/Class150
Size Range: DN50mm-DN500mm
Main valve comprises valve body, diaphragm, stem assembly, seat etc. The valve is separated by diaphragm into two chambers, up and down. Up chamber is control chamber, and down chamber is flow through chamber. The valve stem is driven by diaphragm up and down, and driven force comes from differential pressure which taking by two sides of diaphragm.
