Ambest Electronics (Ningbo) Co Ltd

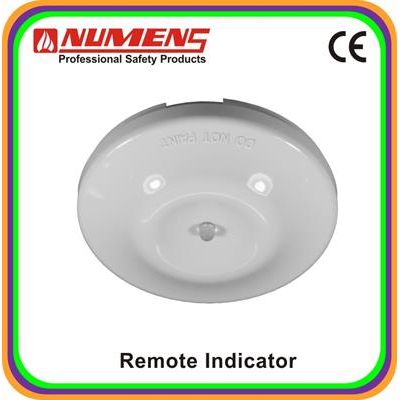

Numens - Model 681-001 -remote indicator

SHARE
681-001 remote indicator provides visual alarm indication for addressable and non-addressable control and indicating equipment detectors when the detector connected to the remote indicator enters the alarm condition. The indicator is used to identify the detector in alarm and is useful where the detector cannot be easily seen when installed in the building. 681-001 remote indicators provide fire detection and alarm system designers with an economical product for life safety and property protection applications.
Most popular related searches

·          Attractive design

·          Easily seen when in the alarm condition

·          Wide operating voltage

·          Compatible with 2-wire addressable and non-addressable detectors

·          Easy installation with no adjustments required

·          Low maintenance



681-001

Operating voltage

DC (5 ~ 36) V

Quiescent current

0 A

Alarm current (max)

20 mA

Terminal wiring

(0.4 ~ 2.5) mm2

Operating temperature

(-20 ~ +60) °C

Operating humidity

(0 ~ 95) % RH, non-condensing

Storage temperature

(-25 ~ +80) °C

Storage humidity

(0 ~ 98) % RH, non-condensing

Dimensions

Φ 79 mm × 19 mm

681 remote indicators have CE compliance.
