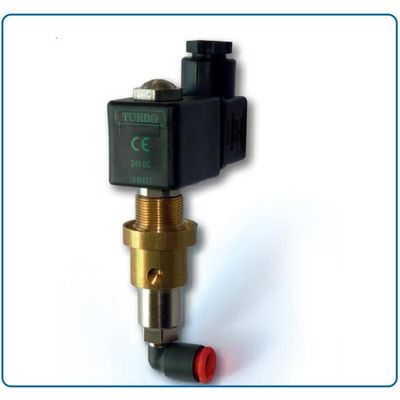

TurboModel LDC & LDM -Remote Pilot Enclosures

SHARE

Fluids: Non-lubricated filtered air. Operating pressure: between 0.5 and 7.5 bar. Operating temperature with heating element: -20°C; +80°C. Body: Brass. Pilot core: Stainless steel. Coil insulation: Class H. Connector: PG9/IP65. Standard voltage: 230 -110 - 24V/50-60 Hz (19 VA), 24VDC (15W). Maximum Valve Distance: 10 Metres.
