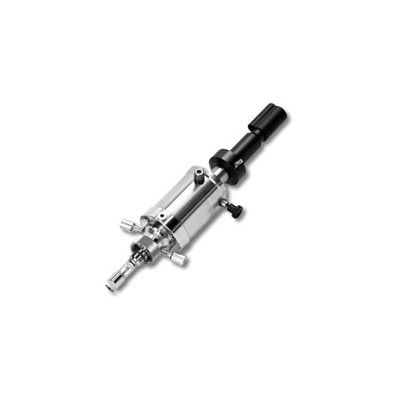

Model SE Series -Retractable Housing

• Allows quick and easy removal of probes from sanitary process without compromising sterility
• Once retracted, two rinse connection ports allow cleaning, calibration and sterilization of the probe while in the retraction chamber
• Includes are traction interlock key to ensure the probe is properly retracted before servicing
• Fits standard 12mm x 120mm pH probes and 12mm x 120mm Polarographic DO sensors
• Process contact parts made of FDA approved materials (316L stainless steel and EPDM or Viton)

The SE Series Retractable Assembly provides easy access to the measuring electrode improving the reliablity of pH and ORP measurements. The assembly has been designed as a sterilizable retractable assembly for foodstuffs, biotechnology, pharmaceutical and other process applications with high demands on sanitation and hygiene. Without interrupting the process you can perform the following operations on the electrode:

• Remove it from the process and into the rinse chamber
• Rinse with water or cleaning solution
• Keep wet during operation pauses
• Replace the electrode
• Sterilize
• Calibrate

The assembly is designed for installation on tanks and pipes. When using standard glass electrodes, only installation positions in which themiddle axis of the assembly lies at an angle between 15° and 75° from the horizontal are permitted (see diagram). If the angle of the installation position is above 75° from the horizontal, air bubbles can accumulate in the chamber.

A. Not Recommended Installation Angle
B. Permissible Angle (air bubbles can build up in the chamber)
C. Recommended Installation Angle
