Sartorelli Depurazione - Model Osmosystem -Reverse Osmosis Systems

Through semi-permeable membranes supported by an advanced integrated pre-filtration system (consisting of filter cartridges capable of eliminating suspended substances, making the water clearer and eliminating unpleasant tastes and odours) which guarantees a long life, excess salinity is reduced and some substances such as algae, pollutants, viruses, bacteria are completely eliminated and sent in concentrated form to the drain. Thanks to the internal presence of high-precision regulators, it is possible to calibrate the appliance in such a way that it produces water more or less rich in salts according to the user's needs . Given the small overall dimensions, the appliance can also be installed under the kitchen sink with its dedicated tap or with a special 3-way tap.

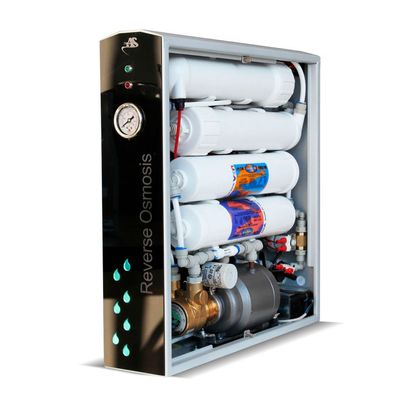

Reverse osmosis system for domestic use

Technical characteristics:

• Osmotic water production: 100 Lt/h (+/- 10%)
• 200W 220V 50HZ air-cooled motor
• Rotary vane pump for high pressure,

in brass, capacity 300 Lt/h, NSF certified

• No. 2 Osmotic Membranes TW 30 1812 100 GPD
• N° 1 12” in-line sediment filter
• N° 1 Activated charcoal filter. 12" in line
• N° 1 10” in-line silvered activated carbon filter

for cutting water filtration

• Function control electronic unit
• Pump start delay
• Flood sensor
• Auto flushing of the membranes
• LED signaling exhaustion of filters and anti-flooding
• Mixing screw for adjusting the salt content of the produced water
• Anodized aluminum bodywork
• Dimensions: (LxWxH) 105x420x440 mm

For the supply of osmotic water it is possible to install the dedicated Osmo1 tap. Alternatively, it is possible to install a single 3-way tap for the supply of hot/cold mains water and ready-to-drink osmotic water.

For the production and supply of still, sparkling and chilled water, the osmosis system can be equipped with one of our refrigerated carbonators .
