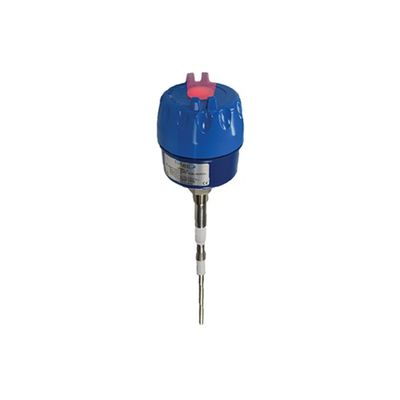

BlueLevel - Model AP/APX -RF Admittance Point Level Sensor
An industry standard level detection sensor for powders and bulk solids – reliable, low maintenance, high value and high reliability. Ideal for Wide Range of Bulk Solid, Liquid and Slurry Applications, Universal Power Supply, Several Probe Versions.
Most popular related searches
- Universal AC/DC Power Supply
- Simple Calibration
- Multiple Probe Versions
- DPDT Relay Output Fail-Safe
- High Process Temp Available (842°F/450°C)
- IP65 (NEMA Type 4X) Enclosure
- Explosionproof Version Available (pending)
- Power Supply : 20-250VAC/DC, 50/60Hz
- Consumption : 25VA
- Enclosure Protection : IP65 (NEMA Type 4X)
- Sensitivity : 0.3pF
- Ambient Temp : -40°F to +176°F (-40°C to + 80°C)
- Process Temp : Standard: -40°F to + 302°F (-40°C to +150°C)
- Mini: -40°F to + 302°F (-40°C to +150°C)
- Cable Extended: -40°F to + 302°F (-40°C to +150°C)
- High: -40°F to + 450°F (-40°C to +232°C)
- Super High: -40°F to + 842°F (-40°C to +450°C)
- Maximum Pressure : 284 psi (20 bar)
- Local Indication : Alarm – Red, Normal – Blue
- Output : DPDT Relay, 5A @ 240VAC
- Fail-Safe : Selectable – High / Low
- Time Delay : 0-30 seconds, Adjustable
- Probe Material : Stainless Steel
- Insulator Material : Standard: PTFE
- Mini: PTFE
- Cable Extended: PTFE
- High: PEEK
- Super High: Ceramic
- Housing : Die-Cast Aluminum, Powder Coat, NEMA Type 4X, IP65
- Certifications : CE Mark, Hazardous Locations (pending)
