Finna - Model SMART III -RF Moisture Sensor
With the SMART III RF moisture sensor, moisture results are continuous, instantaneous and non-destructive. It is widely used across a variety of applications including gypsum, powdered and granular materials, agriculture and wood products. To date, more than 200 SMART III RF moisture measurement sensors have been installed at production facilities under the Finna Sensors brand.
The SMART III Radio Frequency Moisture Sensor employs a radio frequency (RF) power loss technique that operates at 2 Megahertz. The sensor projects an RF field into the sample and measures the loss or change in RF dielectric constant as affected by moisture. Thus, the System Response is a measure of the total water in the RF field, which is directly related to the moisture content of the material. The RF power loss absorption principle is a Finna Sensors patented feature. For high temperature environments up to 485°F (250°C), the high temperature RF sensor can detect product moisture inside a kiln or dryer. Its unique open frame construction minimizes dirt and contaminant accumulations.
SMART III RF Probe
The SMART III RF Probe connects to the SMART III RF / Oscillator Box, and is installed in chutes, silos, etc. for measuring powders or granular materials. System includes Oscillator Box and RF Probe Assembly with 8’ cables. Probe lengths available from 6” to 48” (please specify in comments). Touchscreen console is required (sold separately).
Key Features

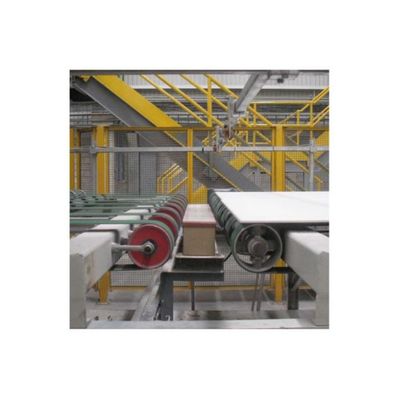

- On-line analysis of moisture content in thicker, board-type products such as gypsum wallboard, ceiling tiles, OSB, lumber products, etc.
- Moisture content is displayed directly on the console’s Windows 7 touch screen PC
- Calibration factors entered on program window
- On-screen indication and switched output of “Loss of Product” at sensor
- Analog 4-20 mA output for logging or control
- Exportable data log (up to 8 hours) with one hour on-screen moisture chart
- Programmable smoothing for accurate readings
