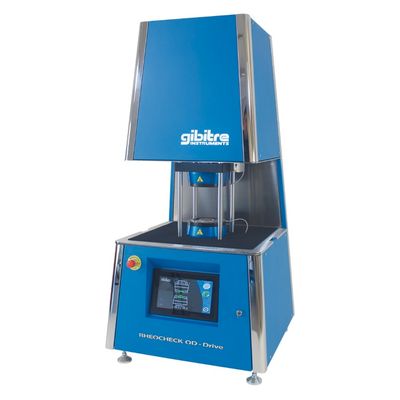

Gibitre - Model Rheocheck OD - Drive -Rheometer

• Totally developed and produced in Italy
• Top brand Components
• Test Chamber and Rotor in conformity with international standards
• Independent temperature controllers with 0.1°C resolution
• Touch-screen display for instrument control
• Full license of Rheocheck_10 software optimized for Bar-code sample identification
• Full license of Datagest software for complete management of Gibitre SQL Database

The new generation of `Drive` instruments is the result of 40 years of experience in the measurement of rheology of rubber and incorporates the most modern technologies regarding mechanical construction, measurement sensors and control software.

Instrument Control Panel
The instrument is equipped with a large touch-screen display with dimensions 10.2“. The buttons on the display permit to start and stop the tests. The display provides complete information about the status of the instrument: connection to the software, temperature of the dies, diagnostic of the sensors installed.

Touch-screen display: everything at your fingertips

Light panel
A light panel, installed in the front part of the instrument, changes the color and permits to check the status of the instrument from a distance. The indicator light identifies the following statuses: Instrument ready, instrument under test, instrument setting test temperature.

Temperature regulation
The regulation of the temperature is performed using thermo-regulators with PID micro-processor and with 0.1°C resolution.

Independent temperature control units ensure sophisticate temperature control and easy replacement in case of failure.

Electrical heating resistances have been specifically designed for this instrument to ensure quick and efficient heating.
