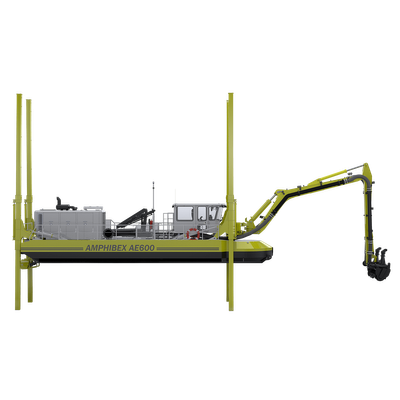

Amphibex - Model AE600 -River Dredger
Our AE600 is a remarkable machine. For river dredging, marine excavation, pumping, shore maintenance, and more, the Amphibex AE600 meets all needs in terms of efficiency and versatility. With a particularly fast travel speed and agility, this dredger allows you to perform complex tasks in addition to ensuring the tightest deadlines. Conceptualized and built to perform, our AE600 combines functionality and ingenuity to operate in more agitated bodies of water.
AE600 IN SIZE
With a total length of 21.43 meters, the AE600 is a perfect tool for river dredging. It totals a working weight of approximately 33 metric tons, making it more stable in agitated waterways.
PUMPING CAPACITY
The AE600 is an amphibious excavator with relatively impressive pumping capacity. At 9115 gallons per minute, it allows you to take up a higher solid percentage during operations.
EXCAVATING REACH
The AE600 offers almost the double as the 400 line in terms of excavating capabilities. It can reach a depth of 12 m on a 170° rotating angle.
GENERAL DESCRIPTION
- Max. length: 21.43 m
- Working weight: (approx.) 33 metric tons
- Haulage distance: 14.40 m
- Haulage Width: 4.3 m
- Haulage Height: 3.2 m
- Speed: (approx.) 5 to 8 knots
ELECTRICAL SYSTEM
- 12 OR 24 Volts
- Batteries (2): 1000 A
HYDRAULIC SYSTEM
- Maximum operating pressure: 450 bar
- Hydraulic system capacity: 500 L (made with a biodegradable vegetable base)
EXCAVATOR
- Excavation radius: 12.9 m on 170°
- Excavation Depth (with telescopic indicator): 12 m
- Power of wrenching scoop: according to the selected option
- Power of attack excavator: according to the selected option
PUMPING CAPACITY
- In Gallons per Minute (GPM): 9115
- Output Diameter: 16 inches
STANDARD EQUIPMENT
- Quick attach buckets and accessories; 500 L bucket (0.6 cubic yard)
- One-piece hull, corrosion resistant, divided into 9 sealed compartments
- Two rear stabilizers, equipped with hydraulically tilting cylinders. Depth control by means of hydraulic cylinder / mechanical control
- Two front stabilizers with detachable floats and removable spuds
- Direction and hydraulic height controllers propulsion system
- Dry powder extinguisher: one 5 kg (10 lbs.)
- Standard excavator Arm with a horizontal pump-shredder bucket and hydraulic pumping system – 2 pumps, maximum capacity of 2 X 167 L (2 X 43 Gal)/second
- Discharge line located under cab / Output connection SAE250 (10”)
- Fast accessory attachment
- Rescue equipment
- Heating system
- Air-conditioning
OPTIONAL EQUIPMENT
- Discharge spout for side casting
- 3 m (9’ 10″) Rake
- 250 mm (10″) X 2 m (6′) discharge pipe, aluminum assembly, SAE 250 (10”) for connection to the floating conduit
- Navigation lights, folding mast
- Winch
- Crane
- Tool box
- 800 L (1 cubic yard) bucket
