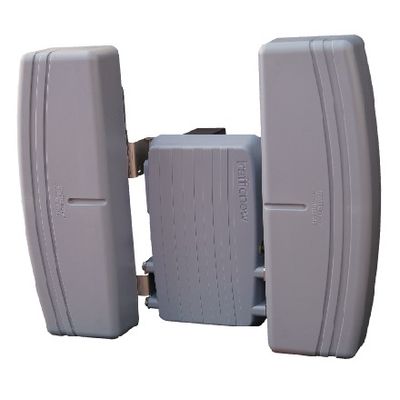

DeepBlue - Model D-v2t -Roadside Sensor
The DeepBlue D-model is a state-of-the-art roadside sensor engineered by trafficnow for precise Bluetooth and Wi-Fi tracking. It is highly effective for measuring travel times and gathering origin/destination data, which enhances infrastructure planning. The system leverages specially designed AA antennas, enabling detection across up to 12 traffic lanes without interference. This feature is complemented by its design for pole-mounted installations, making it minimally invasive and ideal for highway use. Its side-fire capabilities allow seamless wireless signal detection from vehicle-travel electronics such as smartphones and GPS systems. The sensor combines rugged roadside resilience with high performance, supported by a sensitive Bluetooth module and robust internal antennas. In terms of power, the DeepBlue sensors come equipped with three radios, averaging a power consumption of 1.8W without an internal modem, and 3.5W with it, subject to variations based on network conditions. This model, developed at Mobility-labs in Barcelona, reflects hardware version 3.11 with firmware 950.
The DeepBlue D-model by trafficnow – the most powerful roadside sensor in the world for Bluetooth and Wi-Fi tracking. The ideal maintenance-free, non-intrusive sensor for getting online travel time information and origin/destination information for improved infrastructure planning.
The specially designed DeepBlue AA antennas offer optimal dual-channel performance without interference, allowing detecting up to 12 lanes of traffic from the side of the road. The design allows quick mounting on poles, making it very suitable for non-intrusive highway installations. An auto-configured, easy-to-install side-fire Sensor that detects the wireless signals from vehicles; from hands free sets, smart phones and GPS systems.
The sensor combines maximum robustness for roadside operation with optimal performance through its high-sensitivity Bluetooth module and powerful internal antenna.
- The most powerful Bluetooth sensor in the world
- Comes with two DeepBlue AA antennas
- Side-fire; zero set-back
- Easy to install and configure
- Worldwide 3G Dual SIM-Card operation
- Optional Wi-Fi detection
- Power over Ethernet 12-48 VDC
- Optional General Purpose Input/Output
- Reliable all-weather performance
- Low life-cycle cost with no routine maintenance procedures and high reliability. Typical MTBF 10 years or 90,000 hours
- Onboard database
- Can cover up to 12 lanes from the side of the road
- Field proven technology
- Multi-lane, side-fire sensor
- Cost-effective solution for traffic management
- Vehicle Detection and Tracking
- Recognition of Unique Identification for White list applications
- Incident Detection / Travel time
- Non-volatile memory data storage
- Onboard database
- Self-diagnostics on power-up (LED indicator)
- Low power consumption
- Fast, reliable and secure data transmission
- Travel time
- Traffic Engineering (O/D matrices)
- Congestion & Incident detection
- Online web based applications
- The DeepBlue Sensor is easy to install, and has no detector zone setup
- The all-in-one sensor mounts directly onto a pole
- The sensor operates with the Virtual Control Center central software
- The Virtual Control Center can be installed on-premises or using our cloud
- Easy integration with ATMS systems through XML and SOAP, REST web services
