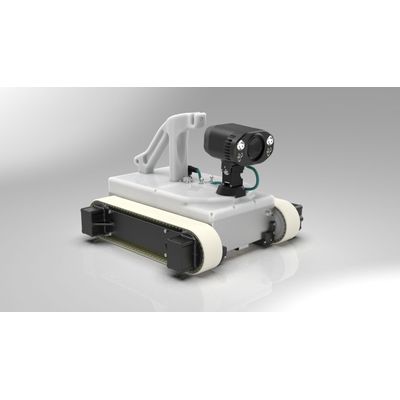

Invert Robotics - Model H-Series - H2200 Hybrid -Robotic Inspection Platforms

• Weight: 12 kg
• Dimensions: 380 x 300 x 400 mm (W x L x D)
• Material: Plastic, aluminium, rubber, stainless steel
• Maximum Cable Length: Standard 40 m can be extended up to 100 m

PERFORMANCE

• Power consumption: 360W max
• Power supply: 36V DC
• Operational temperature range: 0°C to 50°C (configuration for other temperatures are available)

SPEED

• Maximum linear speed: 250 mm/sec (7.2 metres per minute)
• Tracked based differential steering: Yes

ADHESION SYSTEM (VACUUM & MAGNET)

• Active and passive sliding suction adhesion system
• 4x adhesion pads – redundancy built into the suction system
• Active vacuum pump system, prevents the robot from falling in case of power loss
• Increase adhesion capability on carbon steel or rough surface

CERTIFICATIONS

CONTROL CASE

• Easy to set up and versatile
• Fully integrated control system
• Standard game controller to drive the robot
• Daylight readable LCD screen – even in the brightest light
• Pelican Air 1637 carrying case
• Tested against the ISTA-6-FedEx-A standard

WORKING SURFACES

• Any smooth surface, including stainless and carbon steel, glass plastics, composites and aluminium

PAYLOAD CAPABILITY

• Visual inspection cameras as standard payload
• Ultrasonic thickness tester
• Customized NDT tools

OTHER CAPABILITIES

• Transition between floor and wall (without payload) 90-degree angle only
