Maquinaria - Model DSR-3 -Rock Picker

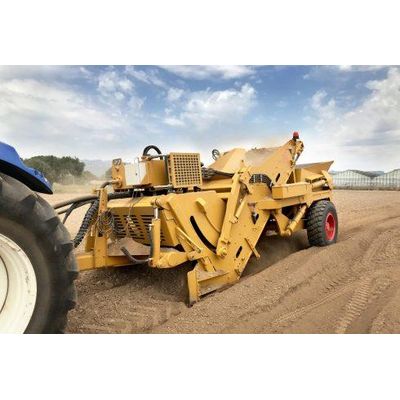

Rock PickerTriginer stone crusher with ground discharge. The "medium" of the trailer-mounted loader mowers. Rock Picker designed for tractors from 160 to 250 HP. Its dimensions and reduced weight make it ideal for fast and agile work.
Most popular related searches
rock picker
stone crusher
hydraulic pump system
chain conveyor
rock crusher
PTO pump
rock trailer
pump system
- Direct unloading to trailer by dump truck:Yes
- Prepared to collect stones and rocks from 2cm to 150cm:Yes
- Adjustable working depth from 5 to 50 cm:Yes
- 48 mm screening:Yes
- 16 mm screening (with intermediate rods):Yes
- Stone collection by means of a conveyor chain with endless movement, which collects, separates and drives the stones to the TANK:Yes
- Coil feeder with floating shaft and hydraulic damping, helical blade distribution:Yes
- Equipped with hydraulic pump and hydraulic motors:Yes
- Machine with hydraulic inversion:Yes
- Machine with hydrostatic system -hydraulic pump on PTO- :Yes
- Machine performance with a working width of 1,9 m:30 to 100 m3/h
- Loading and unloading work cycles:4 to 15 minutes (depending on stone density)
- Project Name: DSR-3 Rock Picker
- Type of destoner: Trailer unloading
- Capacity of TANK: 3 m³
- Unloading height from the ground: 3 m
- Minimum tractor power: 150 HP
- Working width: 1.6 m
- Type of tires: 445/65 R22,5
- Total machine length: 7.3 m
- Total machine height: 2.6 m
- Approximate weight: 8,600 kg
