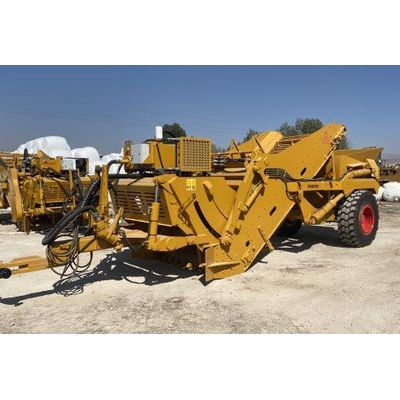

Maquinaria - Model DSR-4 Plus -Rock Picker
Rock Pickers high performance due to its trailer or truck unloading system. Hydraulic transmission: Hydraulic pump directly coupled to the tractor PTO, which gives pressure to 2 hydraulic motors - rim and chain. Our Rock Pickers machines are characterized by their manufacturing quality and performance. On our way to get where we are, we have learned to give value to our work and that of our customers.
Most popular related searches
- Direct unloading to trailer by dump truck:Yes
- Prepared to collect stones and rocks from 2cm to 150cm:Yes
- Adjustable working depth from 5 to 50 cm:Yes
- 48 mm screening:Yes
- 16 mm screening (with intermediate rods):Yes
- Stone collection by means of a conveyor chain with endless movement, which collects, separates and drives the stones to the TANK:Yes
- Coil feeder with floating shaft and hydraulic damping, helical blade distribution:Yes
- Equipped with hydraulic pump and hydraulic motors:Yes
- Machine with hydraulic inversion:Yes
- Machine with hydrostatic system -hydraulic pump on PTO- :Yes
- Machine performance with a working width of 1,9 m:30 to 100 m3/h
- Loading and unloading work cycles:4 to 15 minutes (depending on stone density)
- Project Name: DSR-4 PLUS Rock Picker
- Type of destoner: Trailer unloading
- Capacity of TANK: 4 m³
- Unloading height from the ground: 3.3 m (10 ft.)
- Working width: 2.1 m
- Type of wheels: 17.5 R25
- Total machine length: 7.5 m
- Total machine height: 2.5 m
- Approximate weight: 9,500 kg
