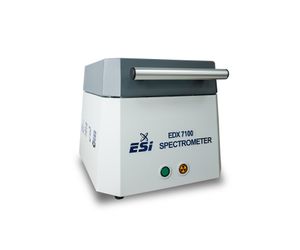

ESI - Model EDX7100 -RoHS1.0 Spectrometer
EDX7100 is a spectrometer specifically designed for compliance testing with environmental directives such as RoHS, halogen-free requirements, and EN71. As a fast, accurate, and cost-effective XRF (X-ray Fluorescence) analyzer, it enables rapid detection of toxic and hazardous elements including lead (Pb), cadmium (Cd), arsenic (As), mercury (Hg), chromium (Cr), bromine (Br), chlorine (Cl), and others. EDX7100 accommodates various regular and irregular samples such as powders, plates, and wires. It operates without strict environmental requirements, making it suitable for industrial and commercial settings like warehouses, assembly lines, and offices. It is applicable in fields including internal quality control, quality inspection, import/export, and customs checks, providing fast, accurate, and non-destructive RoHS screening for imported/exported toys, jewelry, clothing, electronic products, and other consumer goods.
1,One-click automatic testing for simpler and more convenient operation, allowing even non-technical personnel to get started quickly.
2,Equipped with the latest Si-pin detector from American AmpTek, featuring electro-cooling technology, which offers small size, accurate data analysis, and low maintenance costs.
3,Adopts self-developed detector signal enhancement processing system to improve signal-to-noise ratio, achieving a laboratory-level minimum detection limit of 1ppm.
4,Multiple anti-radiation leakage designs, with radiation protection level being the highest among similar products.
5,Unique movement temperature control technology ensures safe and reliable operation of the X-ray source, reducing operating costs.
6,Optimized detection for elements such as Cl and Cr, significantly improving the testing sensitivity and stability for low-content Cl and Cr, providing more accurate detection methods for users' halogen-free analysis.
7,Expandable for coating thickness measurement and metal alloy composition analysis. The PC reporting software of EDX7100 can generate reports immediately and allows customizing report formats, including analysis results, sample information, spectral data, and sample images. Traceable documents make EDX7100 an ideal tool for RoHS compliance testing.
Size: 435mm*470mm*410mm
Weight: 30Kg
Element analysis range：S16-U92
Analyzable content range：1ppm- 99.99%
Detector：AmpTek High-resolution electro-cooling Si-pin Detector
Multi-channel analyzer: 4096 DPP analyzer
X-ray tube：50W high power tube
High-voltage generator: Maximum output voltage of 50kV, with built-in voltage overload protection
Voltage：220ACV 50/60HZ
Ambient temperature：-10°C - 35°C
