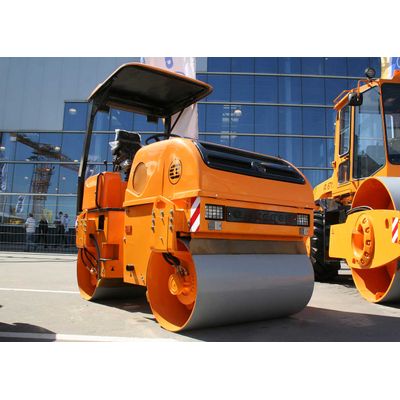

Amkodor - Model 6223A -Roller
Roller AMKODOR 6223A is designed for compaction of asphalt and concrete pavements and bases of various types, including crushed stone, gravel, slag, in the construction and repair of roads, sidewalks, industrial and sports grounds. Rollers can compact individual granular bulk materials such as sand, slag, bituminous sand and fine materials: fine and coarse bituminous chips, black stone fines, medium-sized gravel, cohesive soils.
ENGINE
Model is 3TNV88-DS
Manufacturer YANMAR (Japan)
Rated power, kW (hp) is 26.8 (36)
Cooling system is Water
TRANSMISSION
Hydrostatic with closed loop adjustable pump and non-adjustable hydraulic motors
Travel speed, km/h is 0-9.5
HYDRAULIC SYSTEM
Hydraulic system of working equipment: 2-pump with an adjustable travel drive pump, a non-adjustable vibrator pump, two travel and vibrator hydraulic motors
Swing system: articulated frame, hydraulically actuated
Service brakes: closed-loop of hydrostatic drive
Parking brake system: multi-disc permanently closed oil-immersed hydraulically released brake integrated in the travel motor
Backup brake system: parking brake actuator activated on move in case of service brake system failure
ELECTRICAL SYSTEM
Voltage, V is 12
CABIN
Type is Open
ROPS is Integrated
OTHER
Safety rail is Option
OVERALL AND WEIGHT SPECIFICATIONS
Type is Vibratory self-propelled tandem
Operating weight, kg is 2700
Working body type is Smooth vibratory drum
Compacting width, mm is 1260
Drum diameter, mm is 700
Vibrator drive is Hydrostatic
Driving force, kN is 25
Vibrator oscillation frequency, Hz is 45
OVERALL AND WEIGHT SPECIFICATIONS
Amplitude, mm is 0.25
Line pressure, kg/cm is 10.7
Rated speed, rpm is 3000
Water supply in the wetting system is Forced with electric pump and shut-off valve
Wetting system tank capacity, l is 180
Number of scrapers is Two per drum
OVERALL AND WEIGHT SPECIFICATIONS
The smallest turning radius along the outer contour of the outer track, mm is 4700
Length, mm is 2690
Width, mm is 1440
HEIGHT, MM:
- by skating ring ROPS is 2570
- by flashing light is 2820
- by the visor is 2610
- by steering wheel (excl. ROPS) is 1800
