TECHNICAL SPECIFICATIONS

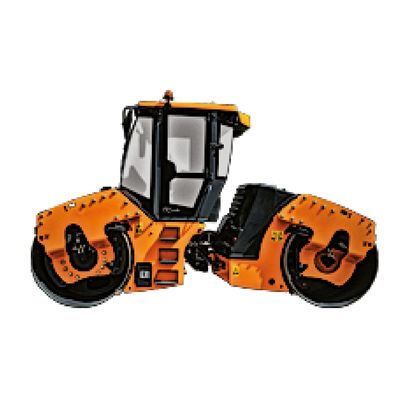

Type – Vibratory self-propelled double drum articulated
Operating weight, kg – 16000±12%
Structural weight, kg – 14500±1000
Drum diameter, mm – 1400±15
Drum width, mm, maximum – 2150±15
Drum linear pressure, kg/cm² – 37±5
Width of compacted strip, mm – 2150±15
Drum wetting system – Forced, controlled. Pump with electric drive and electrically controlled stop valve
Number of scrapers – Two for each drum
Transmission type – Hydrostatic
TRAVEL SPEED, KM/H:
– work – 0…6±2
– transport – 0…12±4
MINIMUM SWING RADIUS
on the inner track, mm, maximum – 5300±300
Minimum gradeability on track, % – 28%±5%
Angle of cross-stability, minimum – 15°
Vibrator oscillation frequency, Hz – 40±5/50±5
Driving force, kN – 160±30/130±20
Engine – YaMZ 53418-10
RATED POWER
Engine, kW – 101 kW at 2100 rpm
Hourly fuel consumption, l/h – 27,5
THE ANGLE OF FOLDING OF THE FRAMES RELATIVE TO THE LONGITUDINAL AXIS OF THE ROLLER:
- at turn (without displacement of the half – frame) – 34±2°
- with displacement of the half – frame – 9±2°
Angle cross swing of the frames – 7±2°
Base, mm – 3760±50
OVERALL DIMENSIONS, MM:
- length – 5000±200
- width – 2290±100
- width with edge processing mechanism (option) – 2350±100
- height (without flashing light) – 3020±50
- height (over flashing light) – 3170±50
