ITM-LAB - Model RS-DP-12A -Rolling Angle Drop Tester

SHARE

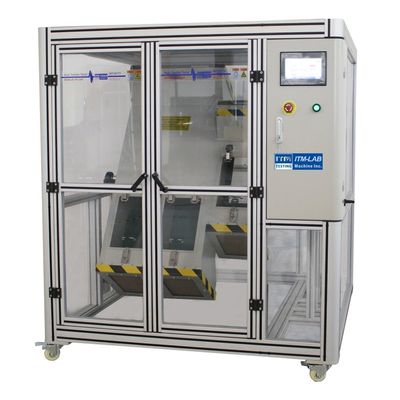

The RS-DP-12A Rolling Angle Drop Tester performs continuous rotation (rolling drop) tests for portable electronic products to verify impact resistance and structural reliability during daily use and transportation. The ITM-LAB RS-DP-12A Auto Tumble Tester is a high-precision reliability evaluation system engineered to simulate repetitive, chaotic rolling impacts experienced by small portable electronics during real-world handling and transit. Featuring a rugged dual-height drum structure, advanced AC servo motor mechanics, and intelligent PLC synchronization, the system provides high repeatability for testing product housing durability, internal assembly stability, and long-term functional retention in strict compliance with global quality standards.



Most popular related searches
environmental testing
test chamber
chamber test
aluminum anodizing
automation control system

  • AC Servo Motor Precision:

Features a premium AC servo drive that locks the drum at any precise angle instantly. This allows engineering teams to pause execution and inspect specimen damage mid-cycle without resetting the system.

  • Industrial-Grade Chassis:

Constructed with heavy-duty 3mm thick structural steel plates and an anodized aluminum alloy frame to completely eliminate body vibration and dampening errors.

  • Standard-Compliant Striking Bed:

Built with a 17–19mm premium wood substrate faced with a 3mm rigid steel plate, fully satisfying international regulatory laboratory criteria.

  • Smart PLC Architecture:

Integrates a 7-inch Omron color touchscreen with a Mitsubishi PLC core for intuitive, programmable cycle counts and real-time speed tracking.

  • Fail-Safe Door Interlocking:

Equipped with an automated electronic safety lock that instantly cuts off motor power the moment the enclosure door is opened during a live test run.

  • Mobile Communication Devices: Smartphones, tablets, e-readers, and feature phones.
  • Wearables & Acoustics: Bluetooth earphones, headsets, portable media players (CD/MP3/MP4), and smart wearables.
  • Precision Electronics & Accessories: Remote controllers, connectors, walkie-talkies, and electronic dictionaries.

Parameter: Specification

  • Model: RS-DP-12A
  • Drop Height Configuration: Dual-Drum Design: 500mm and 1000mm drops (Custom heights available)
  • Tumble Compartment Dimensions: Width: 350mm | Drop Length: 500–1000mm
  • Rotational Test Speed: Adjustable range: 1 to 20 drops per minute (Standard: 10 rpm)
  • Maximum Payload Capacity: 2kg per drum chamber
  • Programmable Test Counter: 1 to 999,999 cycles (Automated limit shutoff)
  • Control System Framework: Omron 7-inch Color HMI + Mitsubishi PLC Core
  • Drive Mechanics: Heavy-duty AC Servo Drive System
  • Enclosure Structure: 3mm Steel Plate Drum, Anodized Aluminum Frame, Milky White Oven-Baked Finish
  • Impact Substrate Media: 17–19mm Wood Backing faced with a 3mm Structural Steel Plate
  • Physical Footprint (W×D×H): 1250 × 1500 × 1680 mm
  • System Net Weight: Approximately 250kg
  • Power Supply Requirements: AC 220V, 50Hz, 3A (Single Phase)

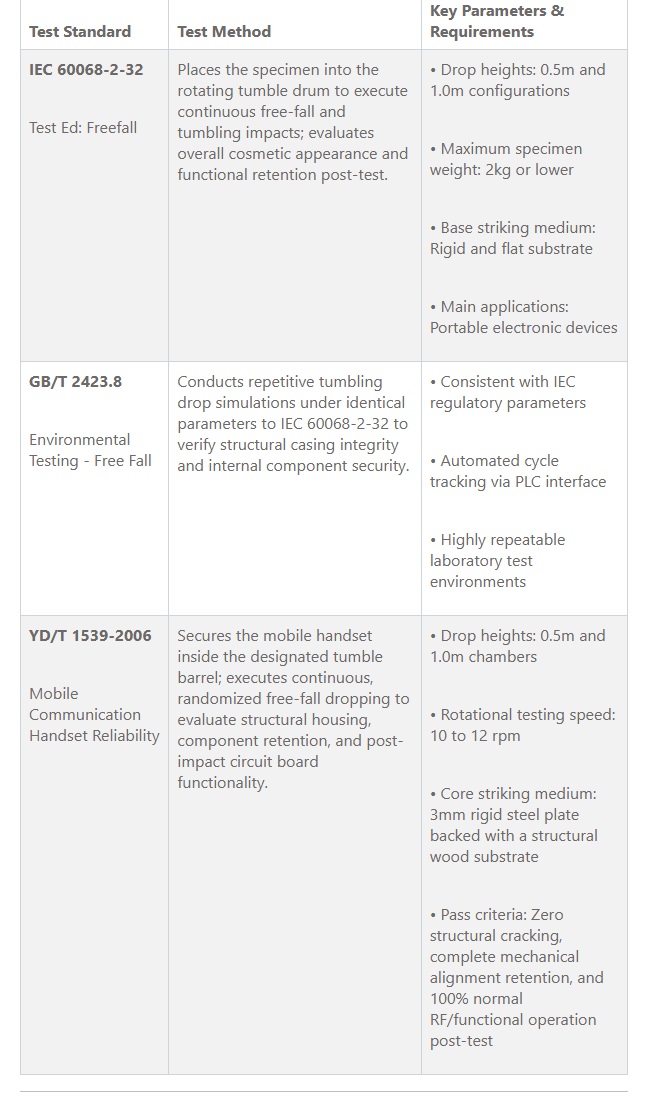

The hardware kinematics, structural fall limits, and tumbling geometries are certified to fully satisfy the following global testing frameworks:

  • IEC 60068-2-32: Environmental Testing - Part 2-32: Test Ed: Free Fall (Tumble Drop Simulation).
  • GB/T 2423.8: Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test Ed: Free Fall.
  • YD/T 1539-2006: Technical Requirements and Test Methods for Mobile Communication Handset Reliability.
