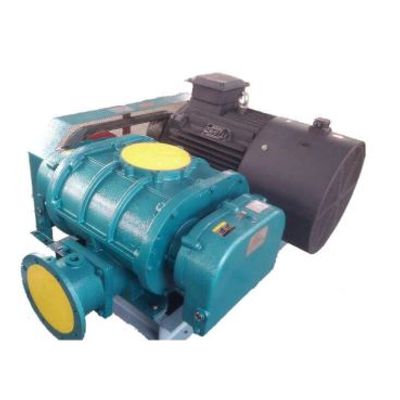

Dacheng - Model DSR50G -Roots Blower
DSR50G Roots Blowers are tri-lobe double oil tanks roots blowers, adopt the advanced technology of Japan, its air capacity is 0.45m³/min-2.31m³/min, the pressure is from 63.7Kpa to 98Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.
Most popular related searches
root blower
bulk materials handling
positive displacement blower
blower
vacuum excavator
vacuum excavation
discharge silencer
clean air
chip conveyor
pneumatic conveyor
- Air capacity and pressure can be customized
- Stable air capacity and less pressure variation
- Clean air not with oil moist
- Construction simple and easy maintenance
- Bearing are all lubricated by oil moist
- Long service life
- Type of technology: Positive displacement blowers
- Design: Positive pressure
- Air capacity: 0.45 to 2.31 m³/min
- Discharge Pressure: 63.7 to 98Kpa
- Medium: Air, Neutral gases
- Conveying: Oil-free
- Weight: 70kg
- Discharge Diameter: 50mm(or customized)
Industry
- Bulk material handling
- Dairy
- Vacuum excavation
- Chemical Industry
- Pulp & paper
- Power generation
- Milling & baking
- Blower application
- Cement & lime
- Waste water
Application
- Pneumatic conveying
- Automated milking
- Potholing & slurry recovery
- Vacuum processing & conveying
- Chip conveying & process vacuum
- Fly ash conveying & aeration
- Blending & conveying
- Material vacuuming
- Fluidization & conveying
- Aeration & backwashing
- Inlet filter silencer
- Discharge silencer
- Anchor bolts
- Baseframe,
- Safety valve,
- Check valve,
- Discharge pressure gauge,
- Flexible connections
- Lubricant.

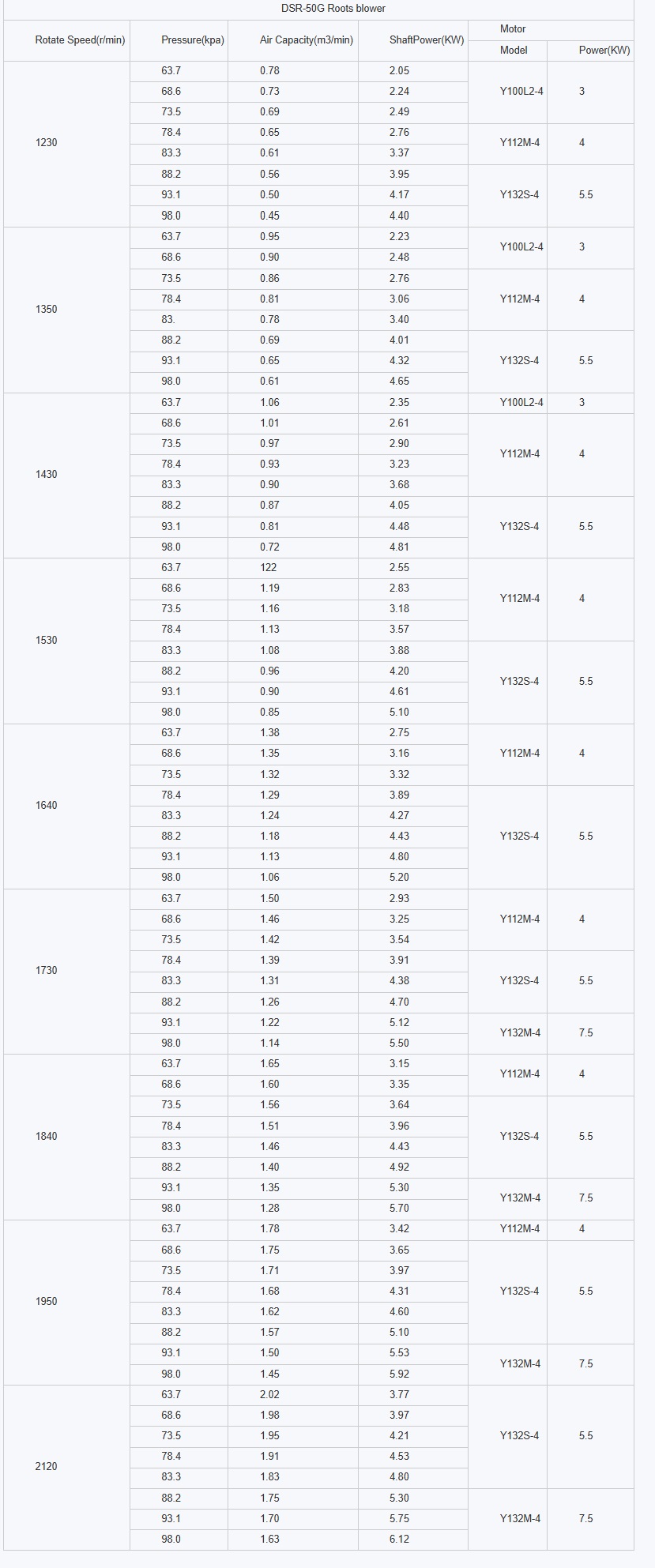

The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.
- The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20? temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.
- The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.
