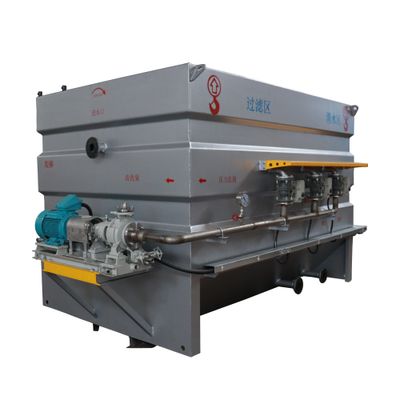

ZL - Model 2.2-5 -Rotary Disc Filter

Fiber cloth rotary disc filter is mainly used for further purification of surface water, deep treatment of sewage (installed after the secondary sedimentation tank of conventional water treatment systems,mainly removing total solids, combined with the addition of chemicals to remove some phosphorus,turbidity, COD, etc., suitable for the standard discharge of existing or newly built sewage treatment plants, and the drainage standard has been raised from level B to level A), reuse of reclaimed water, etc.

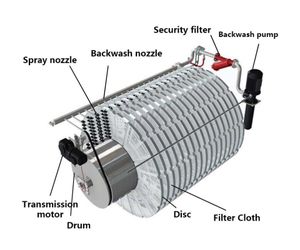

The principle of the semi immersed fiber cloth rotary disc filter is to operate according to the drum filtration method. The filter is composed of a series of horizontally installed rotatable filter discs,which are installed on the central pipe shaft. The maximum immersion volume can reach 60%. The sewage flows through the filter cloth from the inside out, and the filtered clean water flows out from the end of the machine. As the filtration time prolongs, the filter cloth will be covered by suspended solids trapped, resulting in an increase in filtration pressure difference. When the pre-set maximum pressure difference is reached, the turntable begins to slowly rotate, and the flushing rod cleans the suspended solids deposited on the filtration surface at a certain rhythm. The flushing water flows to dissolve suspended solids, and the backwash water is discharged from the box through a thick slurry hopper installed inside the equipment.During the cleaning process, the filtration of sewage is continuous and uninterrupted.

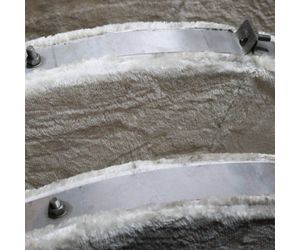

1. The base fabric of the filter cloth is woven from polyester fibers;

2. The free fibers of the filter cloth are made of polyamide material;

3. The density and length of fibers can be selected according to the filtering medium, and different filter cloths can be selected for different water qualities;

4. The height of the fluff on the surface of the filter cloth is generally 10-15mm;

5. High filtration flux, not less than 15mmh-20m3m% h;

6. The fabric fibers are evenly distributed and can form a dense filter layer with a filtration accuracy of 5-8um;

7. The filter cloth medium has an effective filtration depth of 2mm.

1.Municipal Wastewater Industry
Deep filtration after secondary sedimentation tank, replacing traditional sand filter.
Remove suspended solids (SS) and ensure that the effluent meets the Class A standard (SS ≤ 10mg/L).

2.Pulp & Paper Industry
Fiber interception of white water recycling system.
Removal of fine particles after treatment of de ink wastewater.

3.Food & Beverage Industry
Recovery of yeast cells from fermentation wastewater (such as breweries).
Organic residue filtration of fruit and vegetable cleaning water.

4.Mining & Metallurgy Industry
Concentrate tailings from mineral processing wastewater.
Separation of metal hydroxides from acid washing wastewater.
