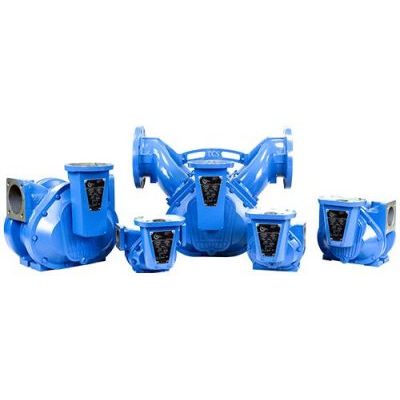

TCS - Model 700 Series -Rotary Flow Meter
The TCS 700 rotary flow meter combines excellent accuracy with low-pressure drop. The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life. This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.
The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life.

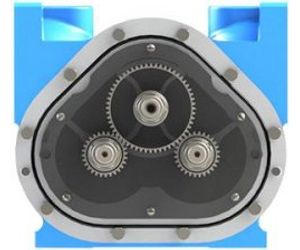

The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.
-
700 AF - All Ferrous
- Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Ni-Resist, PTFE
For metering Pesticides, Fertilizers, Food Processing Liquids, Industrial Chemicals, Solvents, Paints, Inks, Alcohols and many other liquids; such as Liquid Sugars, Liquid Feeds, MEK, Ethanol, Corn Syrup, Soy Bean Oil, Shortenings, Latex Products, Adhesiv -
700 IC - Industrial Products Carbon Bearings
- Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
For metering Alcohols, Chemicals, Solvents, Water and many other Non-Lubricating Liquids such as Acetones, Ethanol, Naphta, Xylene, MEK, Toluene, Resins, etc. -
700 IP - Industrial Products Stainless Steel Bearings
- Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
For Food Processing, Chemicals, General Solvents and many other liquids such as Corn Syrup, Soy Bean Oil, Liquid Sugars, Shortenings, Latex Products, Adhesives, etc. -
700 LP - Liquefied Petroleum Gas
- Materials of Construction: Anodized Aluminum, Stainless Steel, Ni-Resist, Buna
For metering Liquefied Petroleum Gas (LPG) and NH3 -
700 SP - Standard Petroleum Meters
- Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, FKM
For metering refined petroleum products such as Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc. -
700 SPA - Standard Petroleum Aviation
- Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM
For metering refined petroleum products such as Aviation Gasoline, Jet Fuels, Ethanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc. -
700 SPD - Standard Petroleum Ductile Nodular Iron
- Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM, Simriz*
For metering refined petroleum products such as Ethanol, Methanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Aviation Gasoline, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc. -
700 SS - Stainless Steel
- Materials of Construction: 316 Stainless Steel, Carbon Graphite, Treated Stainless Steel, Simriz*, PTFE
For metering the same products as the SP, SPA, SPD and AF meter types, but includes special handling liquids; such as Acids, Anti-Icing Fluids, Vinegar, Fruit Juices, Corn Syrup, Micro-Nutrients, etc. -
700 SSD - Stainless Steel DEF
- Materials of Construction: Stainless Steel, Treated Stainless Steel, Ryton, EPDM
For metering Diesel Exhaust Fluid (DEF), AdBlue, ARLA and AUS32.
- Flow: Capable of up to 1,000 GPM (3,785 LPM); Bi-directional Flow
- Linear Accuracy: Capable of ± 0.15% of over the full flow range
- Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
- Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
- Temperature: - 40 to 160°F (- 40 to 71°C)
- Approvals: Meets a wide range of weights and measures requirements. (Contact factory for information on specific approvals.)
