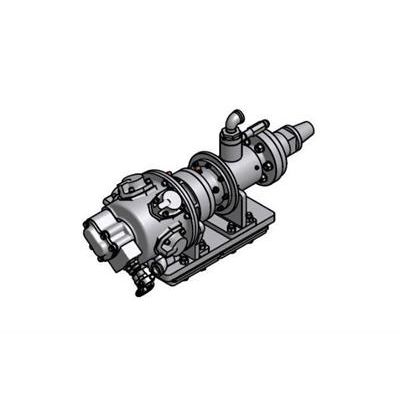

Model MW-80A -Rotation Head
FromWolf Rock Drills
Pneumatic rotation head to be used in drilling procedures using Down the Hole Hammer ( DTH ), specially the model CIR 90 from Wolf o similar. Can be fitted on MW 5000 Air Crawler Drill o similar.
Most popular related searches
- Air consumption: 300 PCM / CFM
- Working pressure: 100 PSI / 7 bar
- Drilling diameter: 2.1/2″ – 5.1/2″
- Rotation: 0 – 70rpm
- Torque @ 6bar (87 PSI): 1600 Nm
- Torque @ 8bar (116 PSI): 3900 Nm
- Weight: 136 kg (299 lb)
