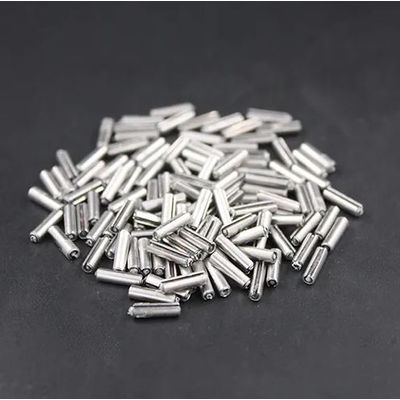

Crepak - Model Yaka 20P -Rugged RFID Tag

Yaka 20P is a Rugged RFID Tag developed for industrial applications, the chip is welded onto the antenna while the tag is capsulated with stainless steel, meets IP68 rating, is resistant to high temperature, shock, chemicals, the diameter of Yaka 20P is only φ2.3mm, suitable for very small assets, Yaka 20P operates in low frequency(125/134.2KHz), adaptive for all material including liquid, metals and carbon fiber, it has 512 bit EEPROM memory which is applicable for universal application.

Yaka 20P features up to 2 centimeters reading distance by the fixed reader and carries more than 10 years lifecycle,  it can be easily attached to assets via embedded, injection-molded, is an ideal product for molding management, assets lifecycle management, work in process management, automation, etc

• Protected chip and bonding process ensures up to 140? high temperature
• Metal housing enables application in ultra harsh environment
• Mini size enables ultra-small assets tracking
• Operation in low frequency applicable for metal, liquid, and even carbon fiber materials
• Multiple attaching methods including embedded, injection-molded, glue, etc

Mechanical Specification
Material: Stainless steel
Size: 2.3x8mm(φ0.09×0.31 in)
Weight: 0.25g/0.009OZ

RF Specification
Frequency: 134.2KHz
Protocol: ISO 11784/11785
Reading range: Up to 2cm
Chipset: EM4305
Memory: 512 bit EEPROM

Environment Specification
Operation temp: -40 – 85?
Store temp: -40 – 140?
Protection: IP68
Shock and vibration: TBD
Mounting way: Embedded, glue
Certification: CE
Warranty: 12 months after delivery
Lifecycle: More than 10 years

Applications

• Battledore, bicycle life cycle management
• Work in process management
• Automation
• Plastic, carbon fiber production mold tracking

Part No.
EM4305: 1112113

Frequency: 134.2KHz
