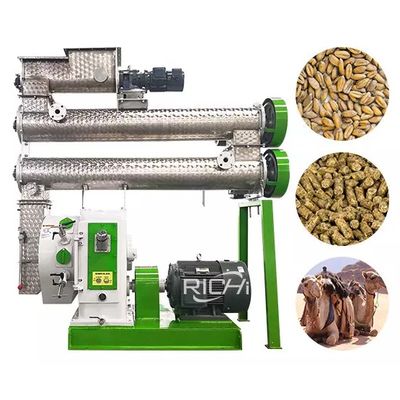

RICHI - Model SZLH -Ruminant Feed Pellet Machine
RICHi offers single ruminant feed pellet machine and 1-100t/h complete feed production line project for ruminant(cattle, sheep, camel, etc) feed manufacturing, according to the requirement, different output and ruminant feed making machine configuration can be customized.
- Capacity: 1-42 T/H
- Main Power: 22-315 KW
- Model: SZLH
Ruminant feed pellet making machine is kind of animal feed pellet machine, used to process ruminant animals such as cattle, sheep, camels, deer, giraffes, alpacas, antelopes, etc.
Ruminants are generally in a hurry when they eat, and they swallow it immediately after a little bit. When they rest, they realize that they are full but cannot digest it. So they vomit the food to the mouth and chew slowly, mix it with saliva, and then swallow it. , This kind of behavior is called ruminating behavior.
As there are many varieties of ruminant feed, there are concentrated feed, concentrated feed, premix, compound feed, etc. Here we are focusing on the different production stages, physiological requirements, nutritional needs of production purposes and the nutritional value of feed materials.
As a basis, a variety of feed materials from different sources are uniformly mixed according to a certain proportion, and ruminant feed is produced according to the prescribed technological process. Ruminant pellet feed has the effects of improving animal production performance, promoting gastrointestinal development and preventing diseases.
Different raw material types of pellet feed have different effects on ruminant production performance, milk quality, feed conversion rate and rumen fermentation. The formulations of ruminant feed pellets for customers in different countries and regions are different.
- Ruminant feed pellet machine adopts gear driving system, with good transmission rate, stable and reliable performance and low noise.
- The key components of ruminant feed pellet machine are imported to ensure longer service life and lower cost for maintenance.
- Large capacity, this type feed pellet maker machine suitable for large farm use and commercial feed mill plants. Easy maintenance, safe and reliable, less investment and quick effect.
- The ruminant feed pellet mill adopts all-stainless steel feeder, anti-arch structure, and frequency conversion speed control.
- The main drive system bearing of this ruminant feed pellet equipment adopts SKF, the oil seal is imported, and the lubrication oil return system is specially set up to ensure reliable bearing lubrication.
The main structure of this ruminant feed pellet machine is composed of feeder, conditioner, ring die granulator host (mainly including main motor, rotor assembly, ring die, pressure roller, cutter assembly and lubrication system, etc.).
It is required that the mixed powder with a moisture content of not more than 18% enter the feeding screw conveyor from the bin to be granulated. By adjusting the speed of the frequency conversion motor, the appropriate feeding amount is obtained, and then it enters the feed pellet machine conditioner. The material is fully mixed with the saturated steam introduced into the conditioner under the stirring of the conditioner`s stirring blade.
If you need to add molasses or fat, you can add it from the molasses inlet. After being fully tempered, the temperature of the mixed powder is generally controlled at 65~95?, and the humidity is between 14~18% according to different formulas.
