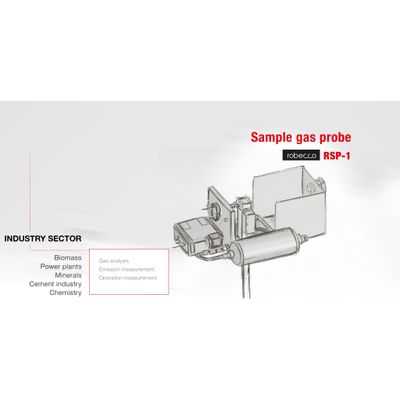

Robecco - Model RSP-1 -Sample Gas Probe

FromRobecco GmbH

SHARE

Sample gas probes extract sample gas unadulterated from processes and make it available for further analysis. Unwanted contaminants are already filtered at the sampling point. The maintenance of the probes is easy and possible without great use of special tools.

Most popular related searches

sample gas probe

gas sampling probe

gas analysis device

Heated probe with Outletfilter and weather protective hood, blow back
Fast changing of filter elements
Low-maintenance
Large active filter surface
For dust concentration up to 2g/m3 with Outletfilter
For dust concentr. up to 10g/m3 with Prefilter
With blow back for dust concentration more than 10g/m3
Heated, 80°C

Material

Stainless steel 1.4301

Gas contacting materials: 1.4404

Sealing: Klingensil C4400

Filter element: Sintered metal 316L, 1.4404

Operating pressure

max. 200kPa abs.

Inlet temp. process medium

max. 200°C

Ambient temperature

-20 °C bis +60°C

self limiting heater

ca. 80°C

power consumption heater

110 – 265 VAC, 50/60 Hz, 50 Watt

power consumption valve

24 VDC, 8 Watt

Sample gas input

G3/4″ female thread

Sample gas outlet

4/6 tube connection

Compressed air connection

12 mm outside diameter

P max Compressed air

10 bar

Filter element (Outlet filter)

2µ

Process connection

DN 65 / PN 6

Dimensions

L 470 mm / W 345 mm / H 260 mm

Weight

ca.12 kg
