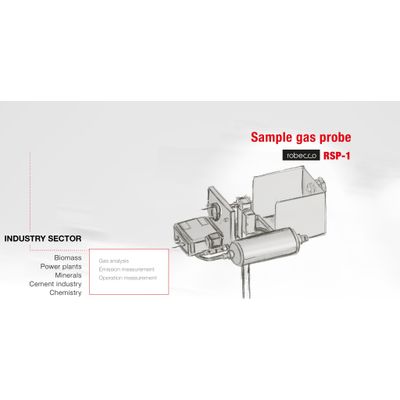

Robecco - Model RSP-1HX -Sample Gas Probe
Sample gas probes extract sample gas unadulterated from processes and make it available for further analysis. Unwanted contaminants are already filtered at the sampling point. The maintenance of the probes is easy and possible without great use of special tools.
Heated probe with Outletfilter and
weather protective hood
Fast changing of filter elements
Low-maintenance
Large active filter surface
For dust concentrations up to 2g/m3 with Outletfilter
For dust concentr. up to 10g/m3 with Prefilter
Without blow back
Heated, 80°C
Material
Stainless steel 1.4301
Gas contacting materials: 1.4404
Sealing: Klingensil C4400
Filter element: Sintered metal 316L, 1.4404
Operating pressure
max. 200kPa abs.
Inlet temp. process medium
max. 200°C
Ambient temperature
-20 °C bis +60°C
self limiting heater
ca. 80°C
power consumption heater
110 – 265 VAC, 50/60 Hz, 50 Watt
Sample gas input
G3/4″ female thread
Sample gas outlet
4/6 tube connection
Filter element (Outlet filter)
2µ
Process connection
DN 65 / PN 6
Dimensions
L 390 mm / W 215 mm / H 260 mm
Weight
ca.9 kg
