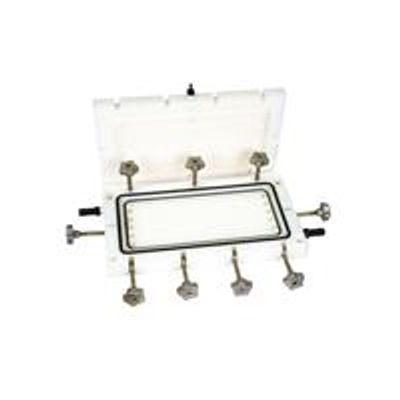

Stamoclean - Model CAT411 -Sample Preparation
Self-cleaning crossflow filter for pressurized pipe sampling. Stamoclean CAT411 provides bacteria-free micro filtration of samples from pressure pipes. Its self-cleaning crossflow filter avoids filter blocking, thus increasing your process safety. Thanks to a minimized dead volume, it reflects changes of your process promptly and shortens the response time of your downstream measuring devices. Stamoclean CAT411 can be easily integrated into existing processes.
-
High operational safety thanks to robust construction
-
Bacteria-free micro filtration
-
Easy installation and integration
-
Short response time of downstream measuring devices thanks to low dead volume
-
Self-cleaning design minimizes operating costs
Stamoclean CAT411 is a self-cleaning sample preparation for:
-
Municipal wastewater treatment plants:
- Return activated sludge
- Waste activated sludge
- Secondary clarifier -
Industrial wastewater treatment plants:
- Return activated sludge
- Waste activated sludge
- Secondary clarifier -
Process pressure pipe installations
-
Measuring principle
Colorimetric
-
Characteristic
Sample Preparation
-
Size
370 x 200 x 70 mm
14.43 x 7.8 x 2.73 inch -
Design
Housing CAT 411 POM
Fastening screws Stainless steelSeals Perbunan®Filter membrane PTFE -
Process temperature
5°C ... 50°C
41°F ... 122°F -
Ambient temperature
5°C ... 50°C
41°F ... 122°F -
Process pressure
0,2 ... 1 bar
3 ... 14.5 psi -
Consistency of the sample
to max. 8 g/l TS
-
Specials
Sample preparation made of pressure pipe without additional pump possible, otherwise a feed pump is needed
-
Application
Water / Wastewater / Processwater
-
Consumables
Filter membranes necessary
