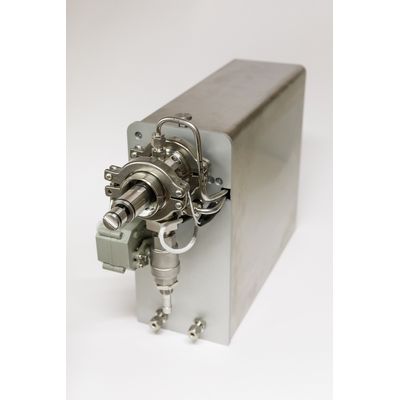

BioSampler - Sampling Port Module

Sampling from high viscosity and slurry cultures.

Most popular related searches

Sample volume adjustable 2-10 mL per pull; several pulls per sampling cycle possible
Sampling interval c. 10 min, but depends on the length of the analysis
Sample at the analyser 2 min after sampling
1st filtration stage adjustable during sampling eliminates >500 µm particles
2nd filtration stage in the piston eliminates >200 µm particles
Sterilization and cleaning with 2 bar steam
Drying with 2 bar air or nitrogen
Connection to reactor or pipe into 25 mm Ingold-style port
Connection to Filtration Module: Sample sent with overpressure via 1/8” Teflon tube
Length 45 cm, Width 12 cm, Height 30 cm
