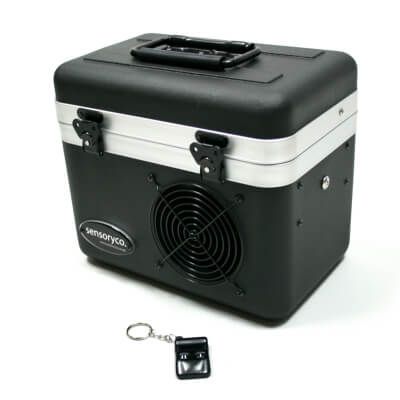

SensoryCo - Model SmX1 Series -Scent Generator
The SensoryCo SmX1 is a scenting system developed for the rigors of immersive training, production and entertainment environments. Integrated in a durable flight case this powerful and flexible unit delivers aroma into into enclosed spaces 0 to 2,500 sq ft / 0 to 230 sq m.
Dimensions: 11.5″ l x 8″ d x 10.25″ h, 292 mm l x 203 mm d x 260 mm h
Weight: 9 lb / 4 Kgs
Input Power: 110-240 VAC, 50/60 Hz, Plug type NEMA 5-15
Power Consumption: 25 Watts
Scents: One
Coverage (approx): Cartridge X150 : enclosed spaces 0 to 2,500 sq ft/230 sq m. Dependent upon airflow, ventilation conditions.
Key Features: Integrated flight case enclosure for durability and, Drop-in loading of cartridges, Integrated mounting points, Easy startup three step operation, no manual required
Media: Poly Infused Cartridges
Delivery: Dry delivery, no fall-out
Consumption: 200 hours continuous (*average depends on conditions and settings)
Electronic Control: Pulse On/Off 1-80 min set via rotary knobs
Wireless Remote Control: Key fob style transmitter, Range up to 250’, Frequency 315 MHz
Wired Remote Control: Contact closure inputs, Binding post external connections
Heating: Solid state heater, gentle warming
Warranty: 2 Years
The SmX1 uses our proprietary Poly Infused cartridges that last longer than traditional media and deliver at higher intensity levels. Combined with our array of specialty aromas, the SmX1 can be deployed in a variety of environments including small and enclosed spaces to larger or more open spaces, using a distributed approach.
The SmX1 is easy to set up, easy to operate, comes with remote control and provides quick integration to outside controls via built-in contact closure inputs. Our system is manufactured in the USA and carries a 2 year warranty.
See Product In Action
Unfortunately it is impossible to see smells. However, the implementation of odors and malodors is a high-impact add to any simulator or training and simulation design. Smells are often coupled to action, like triggering smells with field action. But they can also provide a space with a general background smell.
It Smells in Southend!
This is a short segment from Season 2 Episode 4 of “Gadget Man”. Comedian Richard Ayoade is host and features all sorts of technologies (including our very own SmX1 smell generator). Note: if you are located in certain regions such as Guernsey, Ireland, Isle of Man, Jersey and United Kingdom you may not be able to view this clip.
