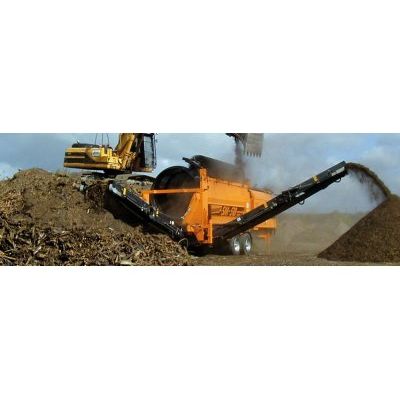

Model SM 518 -Screening Machine
The SM 518 has a screening surface of 22,5 m2. The screen drum has a diameter of 1,8 m (5` 11`) and a length of approx. 5 m (16` 5`). Optionally skeletal drums with changeable screens are available. The screening of most difficult materials can be carried out without problems by the rotating drum. For different applications various mesh sizes are available. The patented, load-sensing material feed enables an optimum utilization of the large screening surface. Due to the modular principle, the basic machine can easily be equipped with a wide choice of options to meet your special requirements. Like all the other DOPPSTADT machines, the SM 518 Plus stands out for the ease of operation and high mobility.
Measurements
Chassis 2-axle central axle, according to 80 km / h. Road Traffic Regulations mit ABS
Total Weight 37,479 lb
Drive
Engine Drive diesel engine
Engine Type DEUTZ TCD 2.9 L4
Engine Exaust Level EUROMOT III B / Tier 4i
Engine Nominal Power 55 kW (75 hp) at 2.200 min-1
Engine Fuel Tank 300 l
Engine Max Torque max. 300 Nm
Equipment
Additional Equipment Starscreen, stone lattice, vibrating screen or Trichtersternsieb, remote control, Zusatzhy- draulikanschlüsse, magnetic rollers on side and rear band, winter package, other conveyor belt lengths, air classifier over rear strip, wire drum
Special Equipment electric engine
Discharge Conveyor
Discharge Conveyor Width 800
Discharge Conveyor Length 5.500 (3.000)
Discharge Conveyor Belt Speed 1,3 m/s
Discharge Conveyor Side
Discharge Conveyor Width 800
Discharge Conveyor Length 5.500 (3.000)
Discharge Conveyor Belt Speed 2,7 m/s
Screen Drum
Screendrum Diameter 1.800, 2 screening fractions, optional: 3rd fraction by stonegrid
Screendrum Length 4.700
Screendrum Perforation selectable, 8 - 100 mm
Screendrum Mesh Type wählbar (Square, diamond, moved square, hole)
Screendrum Drum Wall Thickness selectable , 6 - 12 mm
Screendrum Drum Speed 0 – 18 min-1
Feeding Hopper
Feeding Hopper Feeding Volume 5,0 m3
Feeding Hopper Feeding Width 3.780
With screens of the DOPPSTADT SM series you can screen waste and raw materials such as compost, soil, construction waste, domestic waste, industrial waste, plastic, glass, paper, wood, biomass, sand, gravel, scrap or slag. The screens are ideally suited for combined application e. g. with Doppstadt shredders or windsifters.
- load-sensing material feed to the drum
- Maintenance-friendly thanks to large protection doors, swing-out engine unit and centralized lubrication points
- the roller-bearing of the drum and the direct drive by a robust sprocket ensure operational safety and a quick and easy drum exchange
- possibility to use a star screen module* instead of the drum
- many available options to meet various requirements
- the hydraulically foldable stonegrid*, vibrating grid* or hopper star screen* enables the separation of a 3. fraction
- Short set-up times thanks to the hydraulically foldable and driven discharge conveyors (< 10 min), optional with magnetic pulley*
- Self-cleaning of the drum by rotating, hydraulically foldable brush
- can be combined with other Doppstadt products
- Easy one-man operation (remote control of all main functions), the machine can be moved by the wheel loader grab and slip-on coupling
