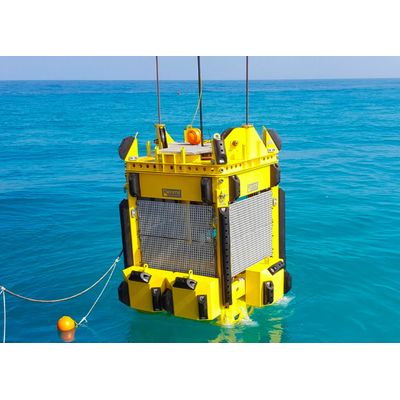

Feritech Geomil Manta - Model FT0576/100DW -Seabed CPT System
The Geomil Manta-100 allows for cutting edge geotechnical surveys to be conducted in very deep waters. The Manta-100 is also by far the most compact system in its class, measuring just 1,500 x 1,500 x 1,600 mm (L x W x H) when transported.
Most popular related searches
geotechnical equipment
geotechnical monitoring
compaction system
seabed cone penetration test
cone penetration test system
geotechnical
< 100 kN
Thrust Capcity
0 - 80 mm/s
Variable retraction and penetration speed
3.5 - 12 T
Modular Dry Weight
- 1,500 x 1,500 x 1,600 mm (L x W x H)
- Thrust capacity 0 – 100 kN
- Real-time CPT data at surface
- Includes umbilical and umbilical winch
- Deep Water
- Power and communication via umbilical
- Single umbilical hoisting (optional)
- Modular dry weight 3.5 – 12 tons
- Variable penetration speed 0 -80 mm/s
- Variable retraction speed 0 -80 mm/s
